摩擦盘外壳 宽齿 - HL

CF Moto的代码为0180-053100-0003 替换代码CF188-053100-0003

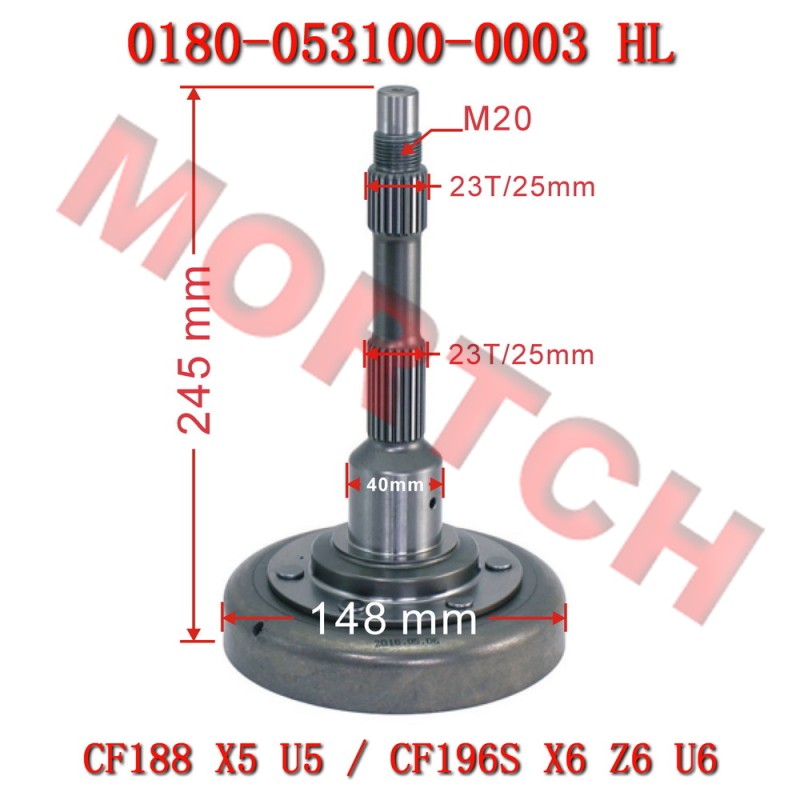

• Thread: 20mm
• Milling Cutter: 25mm / 23T
• Milling Cutter: 25mm / 23T
• Bearing: 6208
• Inner Dia: 25mm / 140mm

If your clutch housing with 34mm deep, please order MICF0800-053100

This has 2 version, please check which one you have CF188-053100-0003 and CF188-053100, the difference is the teeth.

CFMoto use 2 suppliers for this parts, this CF188-053100-0003 should work with the Primary Sheave(0180-051000-0003) and CF188-053100 fits the Primary Sheave(0180-051000)

本商品可适用于

• ATV  CF500  X5  CF188
• ATV  CF500-2  X5  CF188
• ATV  CF500-2A  X5  CF188
• ATV  CF500-5  X5  CF188
• ATV  CF500-5A  X5  CF188
• ATV  CF500-5B  X5  CF188-B
• ATV  CF500-5C  X5  CF188-B
• ATV  CF500-A  X5  CF188
• ATV  CF500-B  X5  CF188
• ATV  CF500-C  X5  CF188
• ATV  CF500-D  X5  CF188
• ATV  CF500-E  X5  CF188
• UTV  CF500-3  UForce 500 U5  CF188-A
• ATV  CF600-B  X6  196S-B(X6)
• ATV  CF600-C  X6  196S-B(X6)
• ATV  CF625-2  X6  196S-B(X6)
• ATV  CF625-2A  X6  196S-B(X6)
• ATV  CF625-B  X6  196S-B(X6)
• ATV  CF625-C  X6  196S-B(X6)
• UTV  CF600-5  UForce U6  196S-B(U6)
• SSV  CF600-3  Z6  196S-C
• SSV  CF600-6  Z6  196S-C
• SSV  CF625-3  Z6  196S-C
• SSV  CF625-6  Z6  196S-C
