CF188/196S牵转具 带减

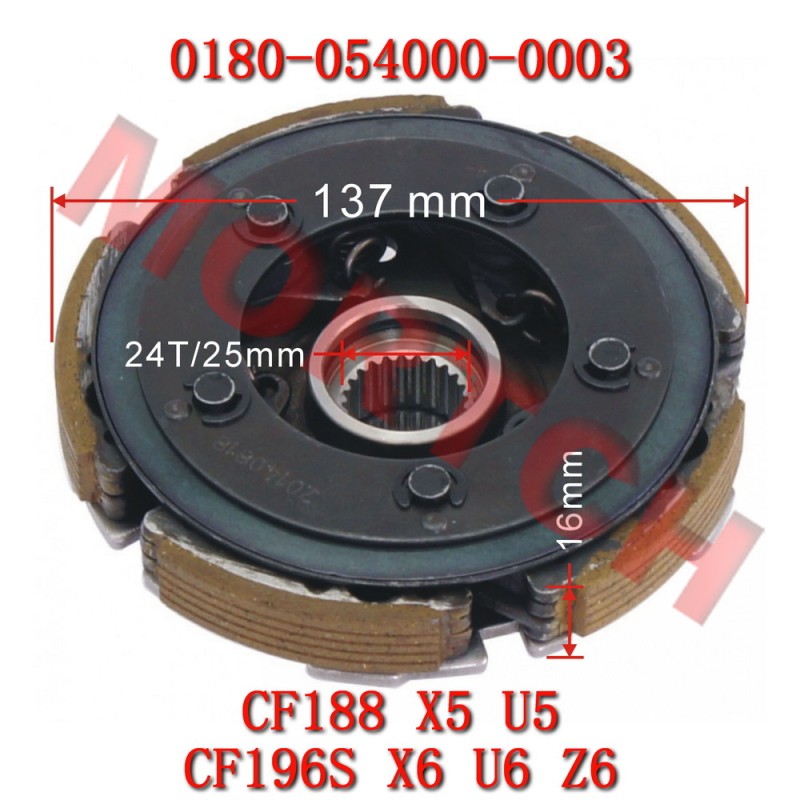

CF Moto的代码为0180-054000 / 0180-054000-0003 替换代码CF188-054000

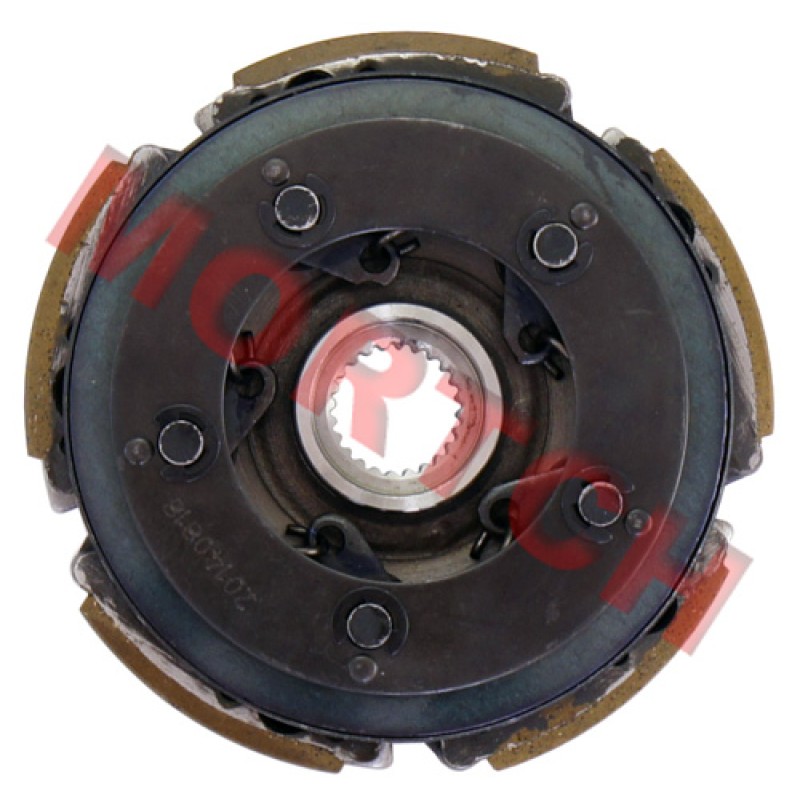

This is Clutch Carrier Assy for the 4 stroke liquid cooled CFmoto engine. It has 2 version, this one with engine brake, the difference is that the middle part, we have other version too.

• Pawl Thickness: 16.5mm (4 Layer)

If your pawl thickness is 24.5mm (6 Layer), please order 0800-054000

• CF188-054005  0180-054005  Retainer
• CF188-054002  0180-054002  Side Washer
• CF188-054004  0180-054004  Washer
• CF188-054003  0180-054003  Spring Seat
• CF188-054001  0180-054001  Return Spring, Clutch
• CF188-054200  0180-054200  Pawl Assy.
• CF188-054100  0180-054100  Fixed Plate Assy.

本商品可适用于

• ATV  CF500  X5  CF188
• ATV  CF500-2  X5  CF188
• ATV  CF500-2A  X5  CF188
• ATV  CF500-5  X5  CF188
• ATV  CF500-5A  X5  CF188
• ATV  CF500-5B  X5  CF188-B
• ATV  CF500-5C  X5  CF188-B
• ATV  CF500-A  X5  CF188
• ATV  CF500-B  X5  CF188
• ATV  CF500-C  X5  CF188
• ATV  CF500-D  X5  CF188
• ATV  CF500-E  X5  CF188
• UTV  CF500-3  UForce 500 U5  CF188-A
• ATV  CF600-B  X6  196S-B(X6)
• ATV  CF600-C  X6  196S-B(X6)
• ATV  CF625-2  X6  196S-B(X6)
• ATV  CF625-2A  X6  196S-B(X6)
• ATV  CF625-B  X6  196S-B(X6)
• ATV  CF625-C  X6  196S-B(X6)
• UTV  CF600-5  UForce U6  196S-B(U6)
• SSV  CF600-3  Z6  196S-C
• SSV  CF600-6  Z6  196S-C
• SSV  CF625-3  Z6  196S-C
• SSV  CF625-6  Z6  196S-C
