杜克390 M42*1.5拉码 反牙

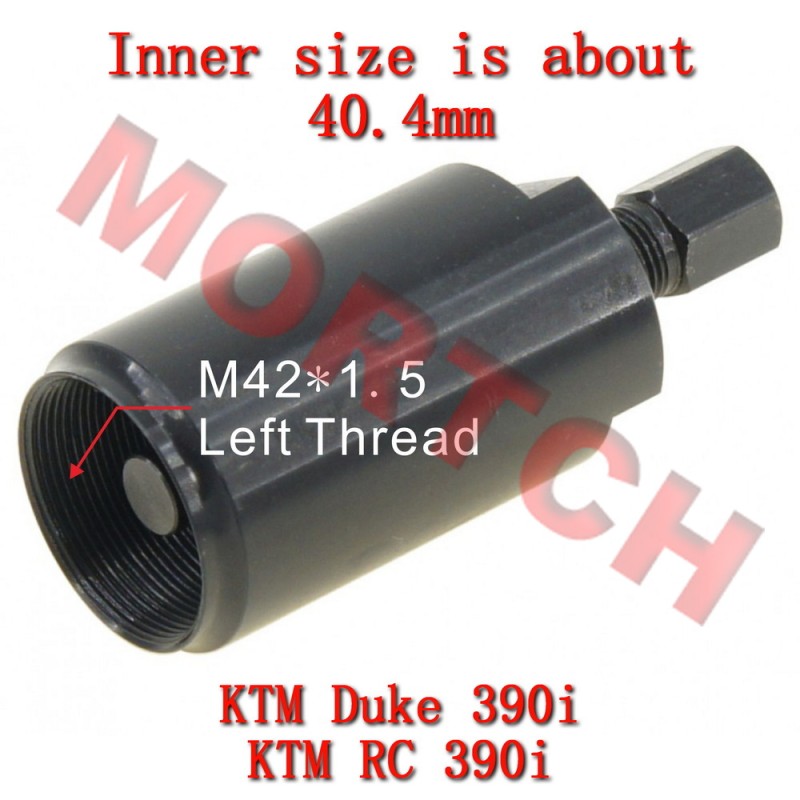

Please noted, this tool is for the rotor size of M42 x P1.5 Left Thread, inner size is about 40.4mm

Be careful when using it, be sure to turn it all the way out before pulling it out. The rotor of Duke 390 only has 2-3 tooth patterns.

Remember that a flywheel is not intended to just "fall off" easily. So do not just keep turning the tool if nothing is happening. You risk either bending the bolt or stripping something if you just keep turning the tool if nothing is happening. Use the heavy hammer on the head of the bolt and then tighten again. Repeating this procedure until the flywheel is safely removed. Impact driver should only be used as a last resort!

Once the tool is tight - use a 3lb sledge hammer and firmly strike the head of the center bolt of the tool. This is should make removal easier. Make sure you measure the threads on your flywheel and compare to 42mm that this tool fits.

Flywheel Puller Ø42 X 1,5 Left KTM Duke/ RC 390 fits the following vehicles:

• KTM Duke 390i ABS H2O 4T E3 2013-2016
• KTM Duke 390i ABS H2O 4T E4 2017-2020
• KTM Duke 390i ABS H2O 4T E5 2021->
• KTM RC 390i ABS H2O 4T E3 2014-2016
• KTM RC 390i ABS H2O 4T E4 2017-2020
• KTM RC 390i ABS H2O 4T E5 2021->
