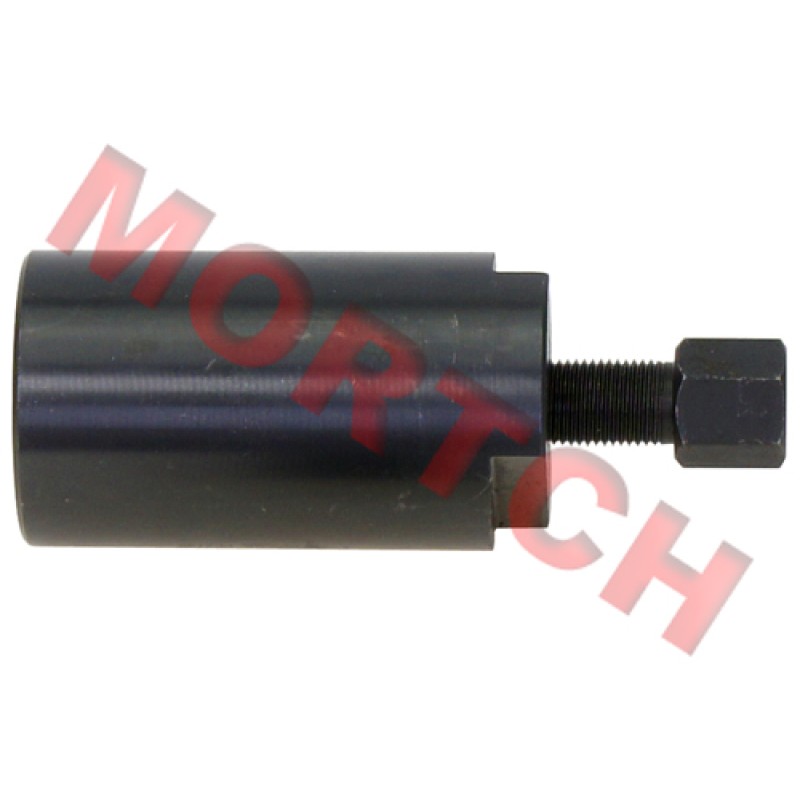

CF188/196S/191转子拉马 M40*P1.5 正
- 品牌： Mortch Motor
- 型号： MICF0180-031000-922-001
- 浏览： 25
- 库存： 现货商品
- 重量： 0.83kg
¥120.00
| 运往： |

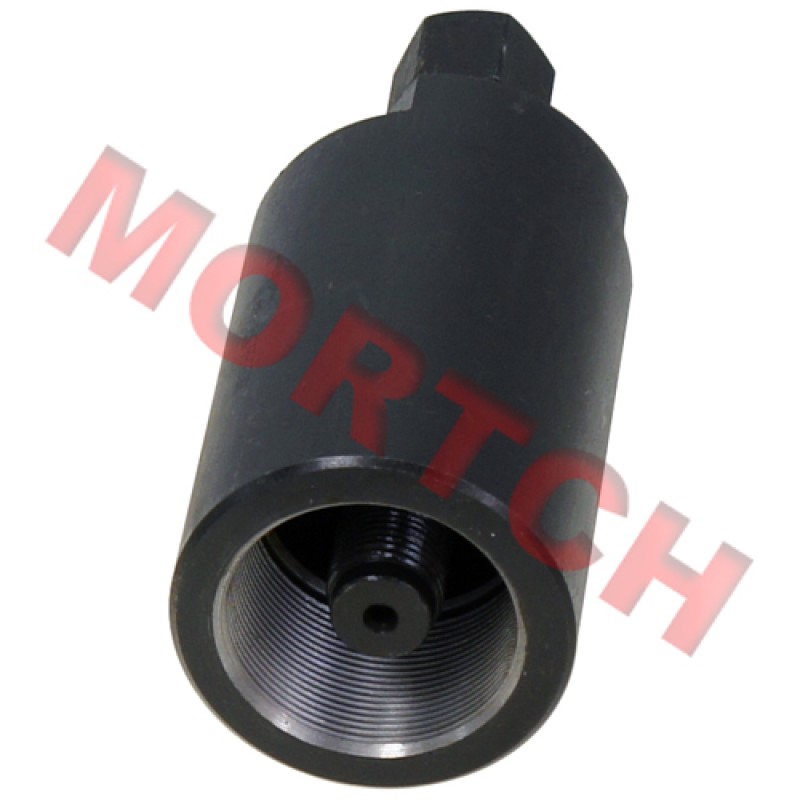

Please noted, this tool is for the rotor size of M40 x P1.5 Right Thread, inner size is about 38.4mm
Remember that a flywheel is not intended to just "fall off" easily. So do not just keep turning the tool if nothing is happening. You risk either bending the bolt or stripping something if you just keep turning the tool if nothing is happening. Use the heavy hammer on the head of the bolt and then tighten again. Repeating this procedure until the flywheel is safely removed. Impact driver should only be used as a last resort!

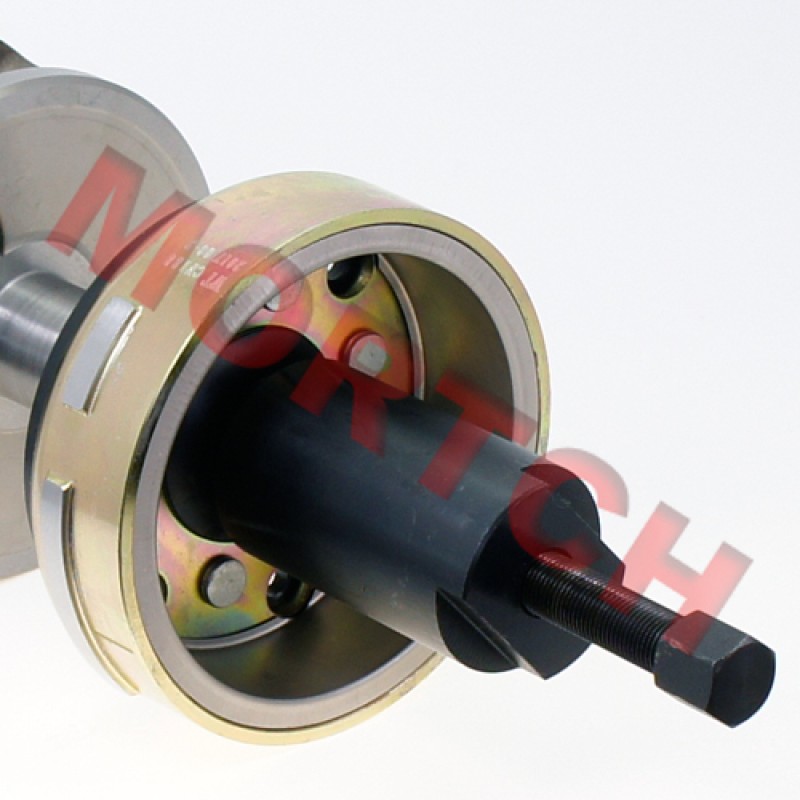

Once the tool is tight - use a 3lb sledge hammer and firmly strike the head of the center bolt of the tool. This is should make removal easier. Make sure you measure the threads on your flywheel and compare to 40mm that this tool fits.
It may also fits Suzuki GSX1000R, and others with M40 x P1.5
- M40 x P1.5
本商品可适用于
- ATV CF400ATR CForce 450 191Q
- ATV CF400ATR-2L CForce 450L 191Q
- ATV CF400ATR-2L(T3a)(SS) CForce 450L 191Q
- ATV CF400ATR-2L(T3b)(KSR) CForce 450L 191Q
- ATV CF400ATR-2L(T3b)(SS) CForce 450L 191Q
- ATV CF400ATR-2L(T3a) CForce 450L 191Q
- ATV CF400ATR-2L(T3b) CForce 450L 191Q
- ATV CF400ATR-2S CForce 450S 191Q
- ATV CF400ATR-2S(T3a) CForce 450S 191Q
- ATV CF400ATR-2S(T3b) CForce 450S 191Q
- ATV CF400ATR-3L CForce 450L 191Q FOR CF400AU-3L/3S
- ATV CF400ATR-3L(T3b) CForce 450L 191Q FOR CF400AU-3L/3S
- ATV CF400ATR-3S CForce 450S 191Q FOR CF400AU-3L/3S
- ATV CF400ATR-3S(T3b) CForce 450S 191Q FOR CF400AU-3L/3S
- ATV CF400ATR-5L(T3b) IRON MAX T3 191Q
- ATV CF400ATR-5S(T3b) IRON T3 191Q
- ATV CF400ATR-L CForce 450L 191Q
- ATV CF400AU CForce 400S/450S 191Q
- ATV CF400AU(CA) CForce 400S 191Q(US)
- ATV CF400AU(US) CForce 400S 191Q(US)
- ATV CF400AU-2L IRON MAX L7e 191Q
- ATV CF400AU-2S IRON L7e 191Q
- ATV CF400AU-3L CForce 450L 191Q-A FOR CF400AU-3L/3S
- ATV CF400AU-3S CForce 450S 191Q-A FOR CF400AU-3L/3S
- ATV CF400AU-A CForce 450S 191Q
- ATV CF400AU-B CForce 450L 191Q
- ATV CF400AU-L CForce 400L/450L 191Q
- ATV CF400AU-L(CA) CForce 400L 191Q(US)
- ATV CF400AU-LF CForce 450L 191-A (KSR)
- ATV CF400AU-SF CForce 450S 191Q-A
- ATV CF400AZ-3L CForce 450L 191Q
- ATV CF500ATR CForce 520 191R-X550
- ATV CF500ATR-2L CForce 520L 191R-X550
- ATV CF500ATR-2L(T3a) CForce 520L 191R-X550
- ATV CF500ATR-2L(T3b) CForce 520L 191R-X550
- ATV CF500ATR-2LC CForce 520L 191R-X550
- ATV CF500ATR-2S CForce 520S 191R-X550
- ATV CF500ATR-2S(T3a) CForce 520S 191R-X550
- ATV CF500ATR-2S(T3b) CForce 520S 191R-X550
- ATV CF500ATR-2SC CForce 520S 191R-X550
- ATV CF500ATR-3 CForce 520 191R-X550
- ATV CF500ATR-3(T3a) CForce 520 191R-X550
- ATV CF500ATR-5L(T3b) COBALT MAX T3 191R FOR CF500ATR-5L&5S
- ATV CF500ATR-5S(T3b) COBALT T3 191R FOR CF500ATR-5L&5S
- ATV CF500ATR-9L CForce 550 191R-E FOR CF500AU-9L/9S
- ATV CF500ATR-9L(T3b) CForce 550 191R-E FOR CF500AU-9L/9S
- ATV CF500ATR-9S(T3b) CForce 550 191R-E FOR CF500AU-9L/9S
- ATV CF500ATR-A CForce 550 191R-X550
- ATV CF500AU-6B CForce 550 191R-C FOR CF500AU-6B
- ATV CF500AU-6L CForce 550 191R-X550
- ATV CF500AU-6L(CA) CForce 550HO 191R-X550(CA)
- ATV CF500AU-7A CForce 520S 191R FOR CF500AU-7S&7L
- ATV CF500AU-7C CForce 520L 191R FOR CF500AU-7S&7L
- ATV CF500AU-7L CForce 520L 191R FOR CF500AU-7S&7L
- ATV CF500AU-7LF CForce 520L 191R-E
- ATV CF500AU-7S CForce 520S 191R FOR CF500AU-7S&7L
- ATV CF500AU-7S(CA) CForce 500S 191R FOR CF500AU-7S&7L(CA)
- ATV CF500AU-7S(US) CForce 500S 191R FOR CF500AU-7S&7L(US)
- ATV CF500AU-7SF CForce 500S/CForce 520S 191R-E
- ATV CF500AU-8L COBALT MAX L7e CF500AU-8S/8L
- ATV CF500AU-8S COBALT L7e CF500AU-8S/8L
- ATV CF500AU-9S CForce 550 191R-E FOR CF500AU-9L/9S
- ATV CF500AU-9L CForce 520L 191R-E FOR CF500AU-9L/9S
- ATV CF500AZ-9S CForce 500/CForce 520 191R-E FOR CF500AU-9L/9S
- SSV CF500US ZForce 500 Trail 191R-Z550
- SSV CF500US(CA) ZForce 550 191R-Z550(CA)
- SSV CF500US(US) ZForce 500 Trail 191R-Z550(US)
- SSV CF500US-EX ZForce 550EX 191R-Z550
- SSV CF500UTR ZForce 550EX 191R-Z550
- SSV CF500UTR(T1a) ZForce 550EX 191R-Z550
- SSV CF500UTR(T1a)(SS) ZForce 550EX 191R-Z550
- SSV CF500UTR(T1b) ZForce 550EX 191R-Z550
- SSV CF500UTR(T1b)(GD) ZForce 550EX 191R-Z550
- UTV CF500UTR-2 UForce 550 191R-U550
- UTV CF500UTR-2（GD） UForce 550 191R-U550
- UTV CF500UU UForce 550 191R-U550
- UTV CF500UU(CA) UForce 500 191R-U550
- UTV CF500UU(US) UForce 550 191R-U550(US)
- ATV CF500 X5 CF188
- ATV CF500-2 X5 CF188
- ATV CF500-2A X5 CF188
- ATV CF500-5 X5 CF188
- ATV CF500-5A X5 CF188
- ATV CF500-5B X5 CF188-B
- ATV CF500-5C X5 CF188-B
- ATV CF500-A X5 CF188
- ATV CF500-B X5 CF188
- ATV CF500-C X5 CF188
- ATV CF500-D X5 CF188
- ATV CF500-E X5 CF188
- UTV CF500-3 UForce 500 U5 CF188-A
- ATV CF600-B X6 196S-B(X6)
- ATV CF600-C X6 196S-B(X6)
- ATV CF625-2 X6 196S-B(X6)
- ATV CF625-2A X6 196S-B(X6)
- ATV CF625-B X6 196S-B(X6)
- ATV CF625-C X6 196S-B(X6)
- UTV CF600-5 UForce U6 196S-B(U6)
- SSV CF600-3 Z6 196S-C
- SSV CF600-6 Z6 196S-C
- SSV CF625-3 Z6 196S-C
- SSV CF625-6 Z6 196S-C
- 请确认该零件适用于您的具体车型及年份。同一名称的车可能因生产年份不同而使用不同零件。
- 建议购买前核对车辆手册，或联系客服确认兼容性。
- 图片、尺寸和描述仅供参考。因生产批次或拍摄光线，实物可能存在细微差异。
- 您收到的商品在功能上符合描述，但外观可能有轻微不同。
- 运费和税费不包含在内。 买家自行承担所有额外费用。
