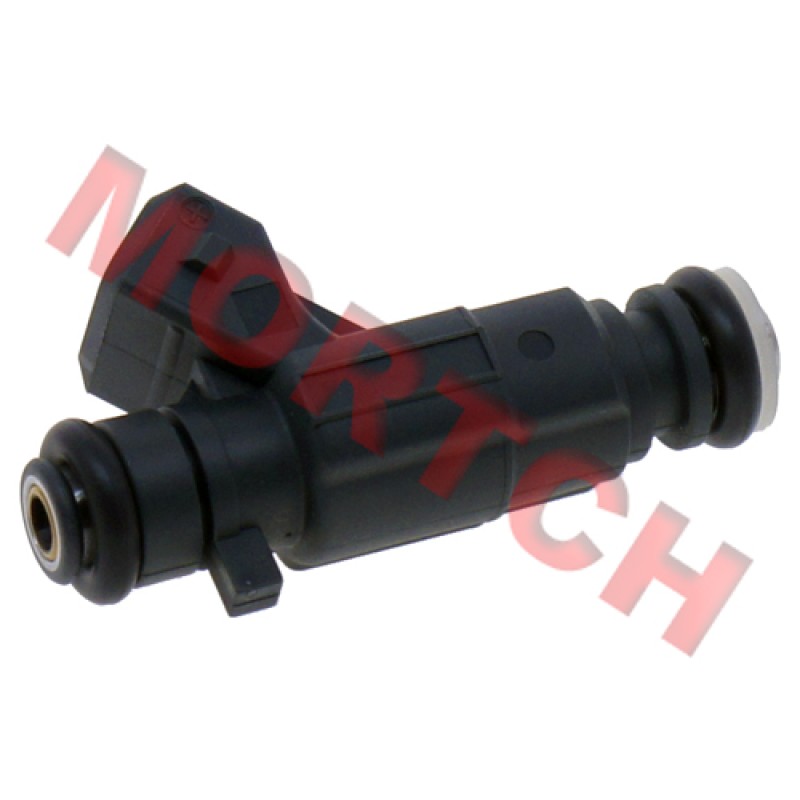

CF188/196S喷油器

CF Moto的代码为018B-171000 替换代码CF188-B-171000

One end of fuel injector mounts into fuel injector seat, and the other end attaches to the injector cap, which connects with a fuel line. Fuel injector is controlled by ECU to inject fuel at stated time into the engine.

This injector nozzle is a 4-hole style. Don't turn injector after the joint between injector and injector cap is installed.

Fuel injector installation:

• Install fuel injector manually. Never knock fuel injector with a hammer.
• When removing and installing fuel injector, the o-rings on both ends must be replaced.
• Perform pressure relief before fuel injector removal if necessary.
• Test the fuel injector sealing after installation to ensure no leaks.

本商品可适用于

• ATV  CF500  X5  CF188
• ATV  CF500-2  X5  CF188
• ATV  CF500-2A  X5  CF188
• ATV  CF500-5  X5  CF188
• ATV  CF500-5A  X5  CF188
• ATV  CF500-5B  X5  CF188-B
• ATV  CF500-5C  X5  CF188-B
• ATV  CF500-A  X5  CF188
• ATV  CF500-B  X5  CF188
• ATV  CF500-C  X5  CF188
• ATV  CF500-D  X5  CF188
• ATV  CF500-E  X5  CF188
• UTV  CF500-3  UForce 500 U5  CF188-A
• ATV  CF600-B  X6  196S-B(X6)
• ATV  CF600-C  X6  196S-B(X6)
• ATV  CF625-2  X6  196S-B(X6)
• ATV  CF625-2A  X6  196S-B(X6)
• ATV  CF625-B  X6  196S-B(X6)
• ATV  CF625-C  X6  196S-B(X6)
• UTV  CF600-5  UForce U6  196S-B(U6)
• SSV  CF600-3  Z6  196S-C
• SSV  CF600-6  Z6  196S-C
• SSV  CF625-3  Z6  196S-C
• SSV  CF625-6  Z6  196S-C
