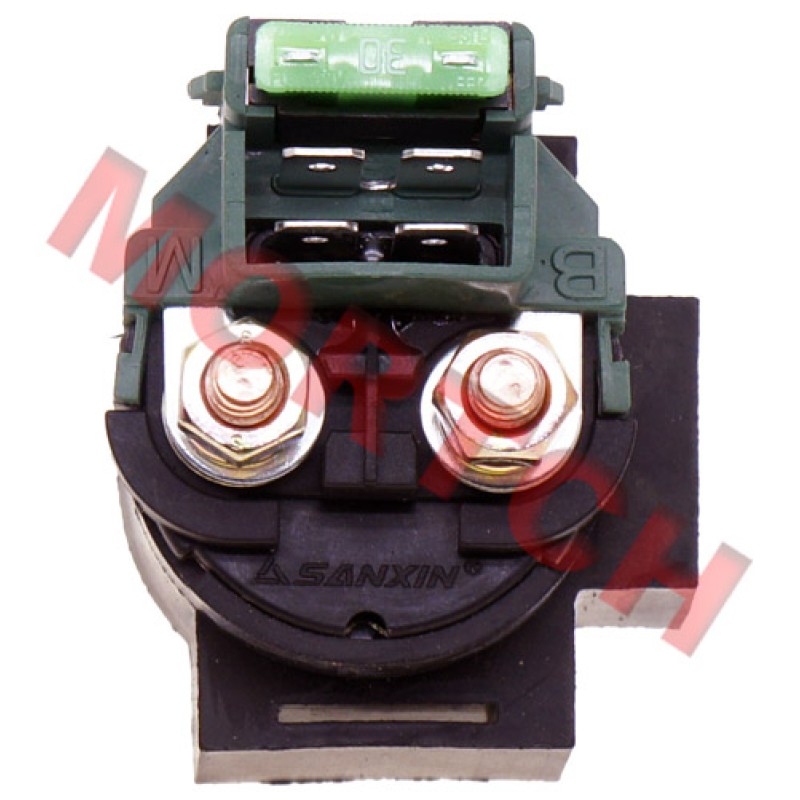

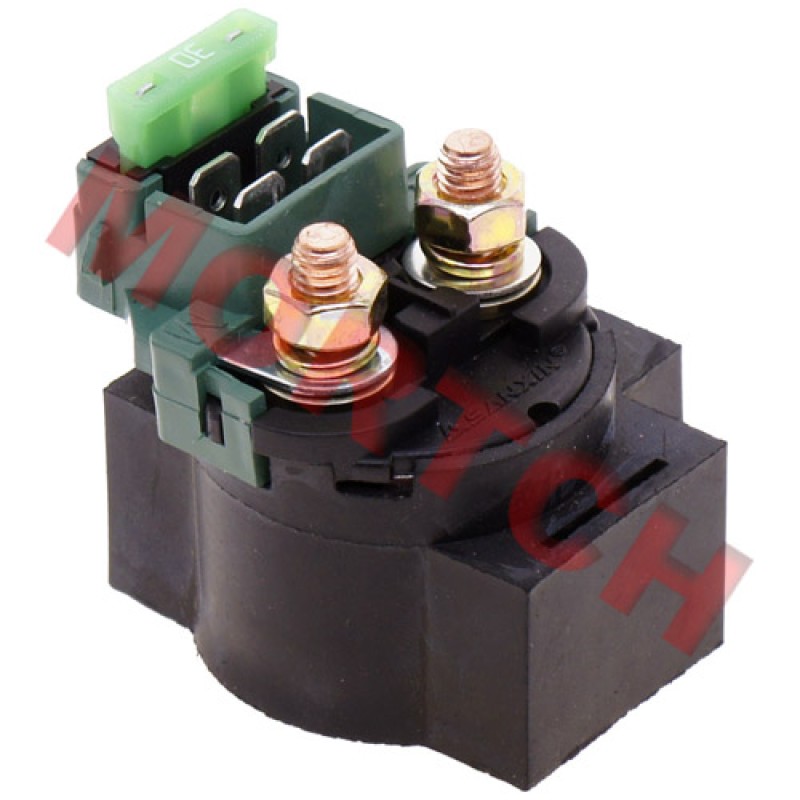

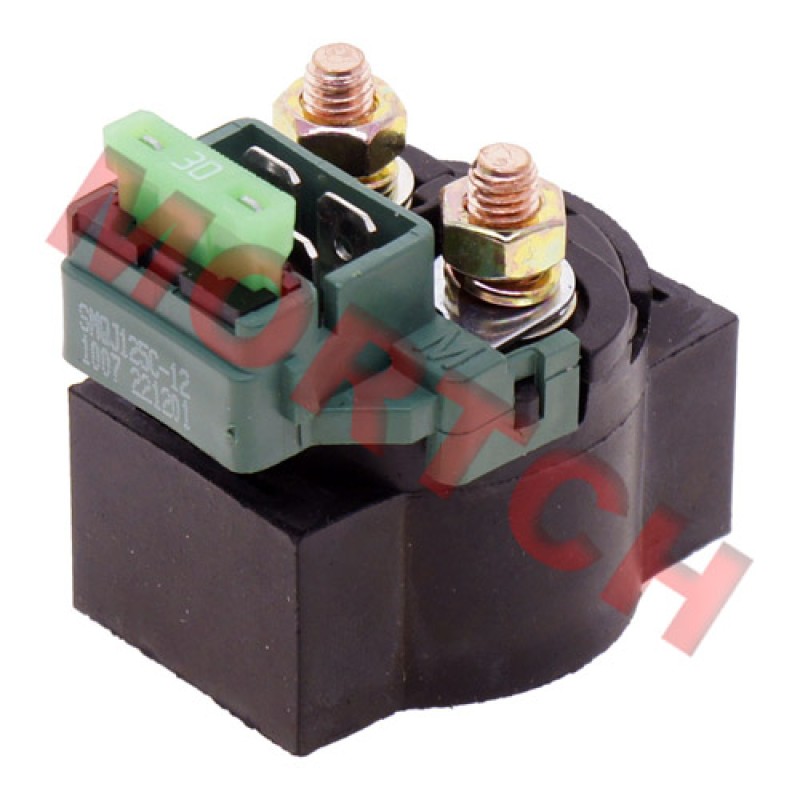

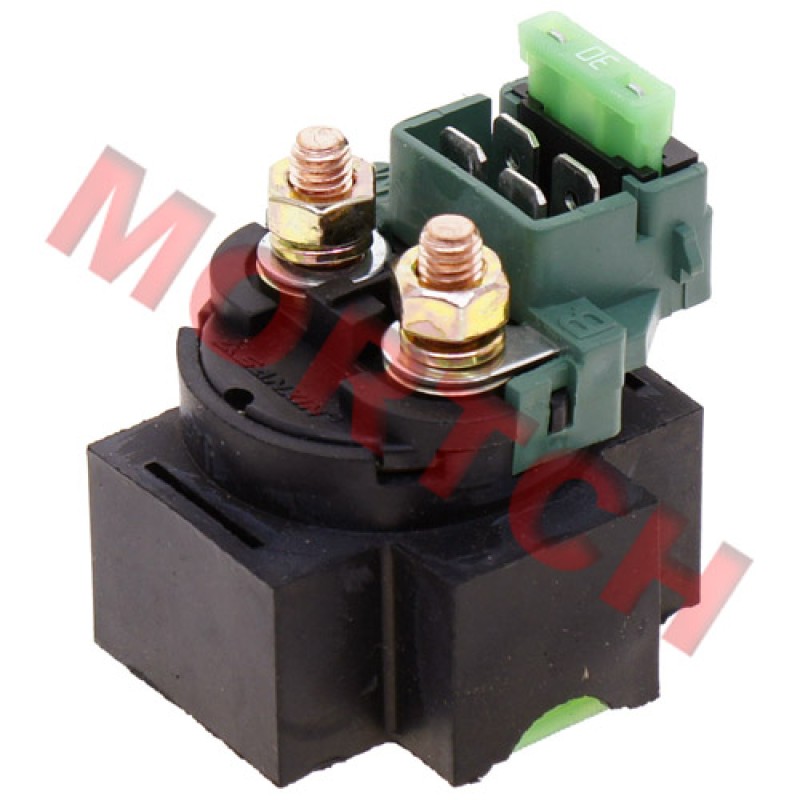

起动继电器

This Starter Relay / Starter Solenoid applies to (and is not limited to) 250cc to 600cc electric start engines. This relay operates in the same way as other non-fuse based relays and using a 20A in-line fuse is one of the best ways to provide additional circuit protection. Bolt studs are 2cm apart center to center. This Starter Relay is most commonly used for Chironex Spartan 500cc and Chironex Spartan 600cc UTVs (4x4/2x4 and similar variations), Xinyang 500cc - 600cc ATVs and UTVs (4x4/2x4 and similar variations) as well as a range of CF Moto machines such as the CF500 ATV.

Most commonly used for (but not limited to) Chironex Spartan 500cc UTVs (4x4/2x4 and similar variations), Chironex Spartan 600cc UTVs (4x4/2x4 and similar variations), CF Moto 500cc and 600cc UTVs (4x4/2x4 and similar variations), Xinyang 500cc XY500UE, Xinyang 600cc XY600UE ATVs and UTVs (4x4/2x4 and similar variations).

Common Chironex model name is primarily listed as "Chironex 500cc or 600cc Spartan XUV or UTV", Common listed Chironex Spartan starter solenoid / starter relay part number is 31800-5000 and is listed as "STARTING RELAY" in their parts lists.

Common CFMOTO model names consist of variations of "CF Moto 400cc ATV", "CF Moto 500cc ATV", "CF Moto 600cc UTV", "CF Moto 600cc UTV", "CF Moto 600cc XUV", "CF moto 600cc 4x4" etc. Common listed CF Moto starter relay part number is 9010-150310-1000 with 'old part number' listed as 901-15.03.10-1 and formal description as "STARTER RELAY".

Common Xinyang model names consist of variations of "XY500UE" and "XY600UE", as well as a range of less formal names such as "Xinyang 500cc or 600cc UTV", "Xinyang 500cc or 600cc XUV", "Xinyang 500cc or 600cc ATV", "Xinyang 500cc/600cc 4x4/2x4" etc. Common listed Xinyang starter solenoid / starter relay part number is 31800-5000 and is listed as "STARTING RELAY" in their parts lists.

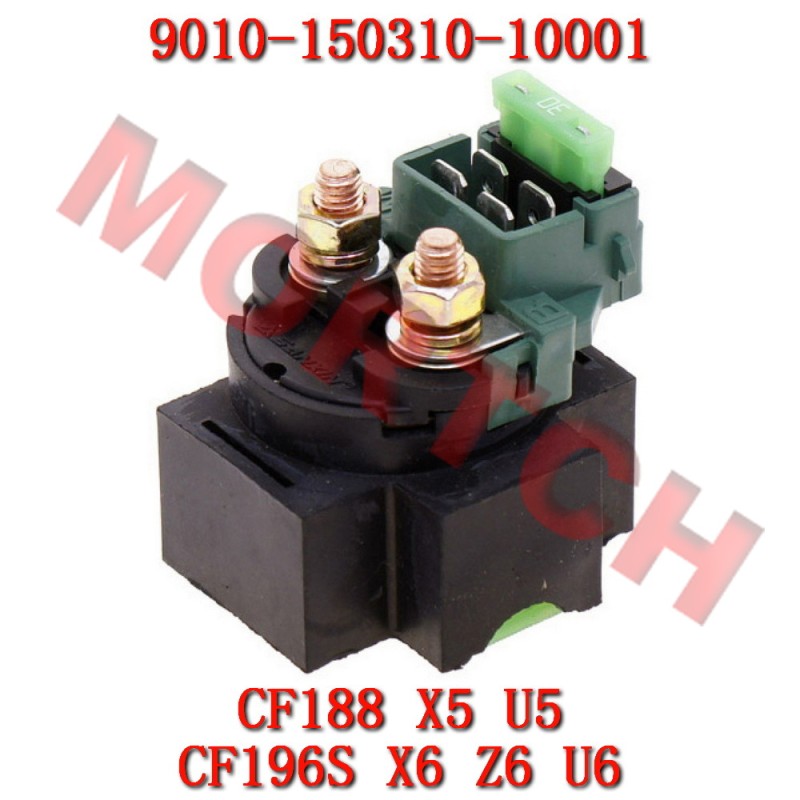

CF Moto 500cc ATV的代码为 9010-150310-10001 替换代码901-15.03.10

• Load 12V between positive and negative terminal. Use multimeter to check if there is continuity between 2 contacts.
• If multimeter clicks, there is continuity between contacts.
• If 12V is removed, no continuity remains between contacts.
• If both the above two items are in good condition, it indicates the replay is well.
• Turn multimeter to DIODE.
• Note: Loading voltage between terminals can not exceed 2 minutes, otherwise, starter relay may overheat or burn.

本商品可适用于

• ATV  CF400ATR-5L(T3b)  IRON MAX T3
• ATV  CF400ATR-5S(T3b)  IRON T3
• ATV  CF400AU-2L  IRON MAX L7e
• ATV  CF400AU-2S  IRON L7e
• ATV  CF500-5B  X5
• ATV  CF500-5C  X5
• ATV  CF500ATR-5L(T3b)  COBALT MAX T3
• ATV  CF500ATR-5S(T3b)  COBALT T3
• ATV  CF500AU-8L  COBALT MAX L7e
• ATV  CF500AU-8S  COBALT L7e
• ATV  CF600-C  X6
• ATV  CF625-2  X6
• ATV  CF625-2A  X6
• ATV  CF625-B  X6
• ATV  CF625-C  X6
• MOTORCYCLE  CF1280-2
• MOTORCYCLE  CF1280-2(CN4)
• MOTORCYCLE  CF1280-2(INTL)
• MOTORCYCLE  CF400  400NK
• MOTORCYCLE  CF400-5(CN4)  400GT
• MOTORCYCLE  CF400-5(EU4）
• MOTORCYCLE  CF400-A(CN4)  400NK
• MOTORCYCLE  CF400-A(EU4)  400NK
• MOTORCYCLE  CF400-A(TH)  400NK
• MOTORCYCLE  CF400-B(CN4)  400NK
• MOTORCYCLE  CF400-B(EU4)  400NK
• MOTORCYCLE  CF650  650NK
• MOTORCYCLE  CF650-2  650TK
• MOTORCYCLE  CF650-3  650MT
• MOTORCYCLE  CF650-3C(CN4)  650MT
• MOTORCYCLE  CF650-3C(EU4)  650MT
• MOTORCYCLE  CF650-3C(TH)  650MT
• MOTORCYCLE  CF650-3F(EU5)
• MOTORCYCLE  CF650-6  650TR-G
• MOTORCYCLE  CF650-6A(CN4)  650TR-G
• MOTORCYCLE  CF650-7  650NK
• MOTORCYCLE  CF650-7B(CN4)  650NK
• MOTORCYCLE  CF650-7B(EU4)  650NK
• MOTORCYCLE  CF650-7B(TH)  650NK
• MOTORCYCLE  CF650-7C(CN4)  650NK
• MOTORCYCLE  CF650-7C(EU4)  650NK
• MOTORCYCLE  CF650-7F(EU5)
• MOTORCYCLE  CF650-8(CN4)  650GT
• MOTORCYCLE  CF650-8(EU4)  650GT
• MOTORCYCLE  CF650-8-01  650GT
• MOTORCYCLE  CF650-8-02
• MOTORCYCLE  CF650-8F(EU5)
• MOTORCYCLE  CF700-2(CN4)  700 CL-X Heritage
• MOTORCYCLE  CF700-2(EU5)  700 CL-X Heritage
• MOTORCYCLE  CF700-2(INTL)
• MOTORCYCLE  CF700-2A(CN4)
• MOTORCYCLE  CF700-2A(EU5)
• MOTORCYCLE  CF700-2A(INTL)
• MOTORCYCLE  CF700-2A(KTM)
• MOTORCYCLE  CF700-2AH
• MOTORCYCLE  CF700-2AUS
• MOTORCYCLE  CF700-2C(CN4)
• MOTORCYCLE  CF700-2C(EU5)
• MOTORCYCLE  CF700-2C(INTL)
• MOTORCYCLE  CF700-2C(KTM)
• MOTORCYCLE  CF700-2CH
• MOTORCYCLE  CF700-2D(EU5)
• MOTORCYCLE  CF700-2D(INTL)
• MOTORCYCLE  CF700-2D(KTM)
• MOTORCYCLE  CF700-2DH
• MOTORCYCLE  CF700-2US
• POLICE MOTORCYCLE  CF1250G
• POLICE MOTORCYCLE  CF1250J
• POLICE MOTORCYCLE  CF1250J（25款）
• POLICE MOTORCYCLE  CF400J
• POLICE MOTORCYCLE  CF400J-2
• POLICE MOTORCYCLE  CF400J-3
• POLICE MOTORCYCLE  CF650G护卫车
• POLICE MOTORCYCLE  CF650G警灯警具国产化
• POLICE MOTORCYCLE  CF650G阅兵车
• POLICE MOTORCYCLE  CF650J  650TR
• POLICE MOTORCYCLE  CF650J-2
• POLICE MOTORCYCLE  CF650J-2A
• POLICE MOTORCYCLE  CF650J-2B
• POLICE MOTORCYCLE  CF650J-2高配
• POLICE MOTORCYCLE  CF650J-3
• POLICE MOTORCYCLE  CF650J-3A
• POLICE MOTORCYCLE  CF650J-3A国四军援车
• POLICE MOTORCYCLE  CF650J-3军援国宾车
• SSV  CF600-3  Z6
• SSV  CF625-3  Z6
