GY50 八极定子-5线
- 品牌： Mortch Motor
- 型号： MIGY50-4039B
- 浏览： 9
- 库存： 现货商品
- 重量： 0.58kg
- 尺寸： 13.00 x 13.00 x 5.50cm
¥23.00
| 运往： |

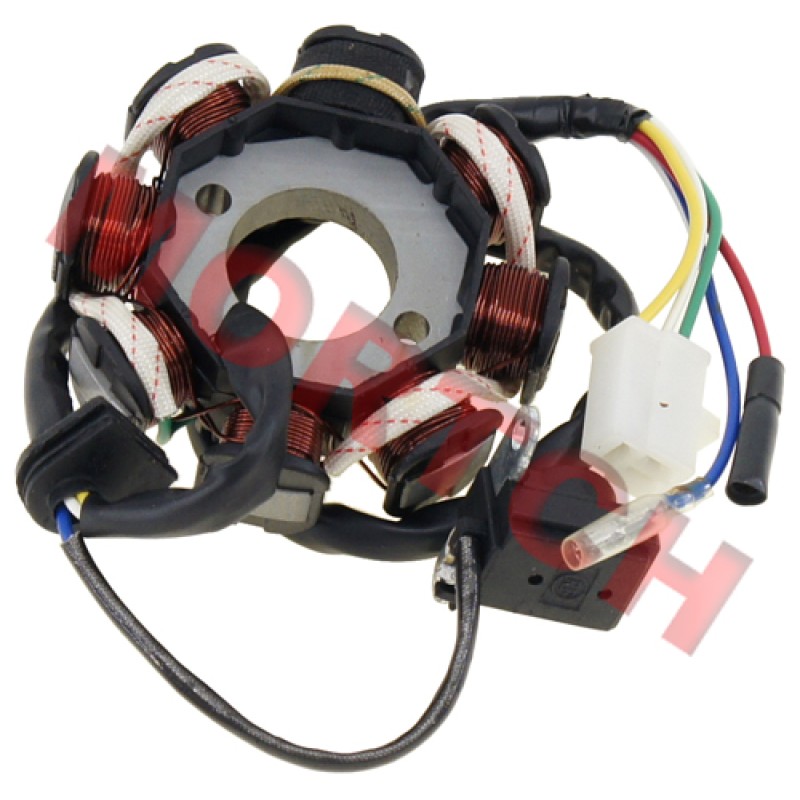

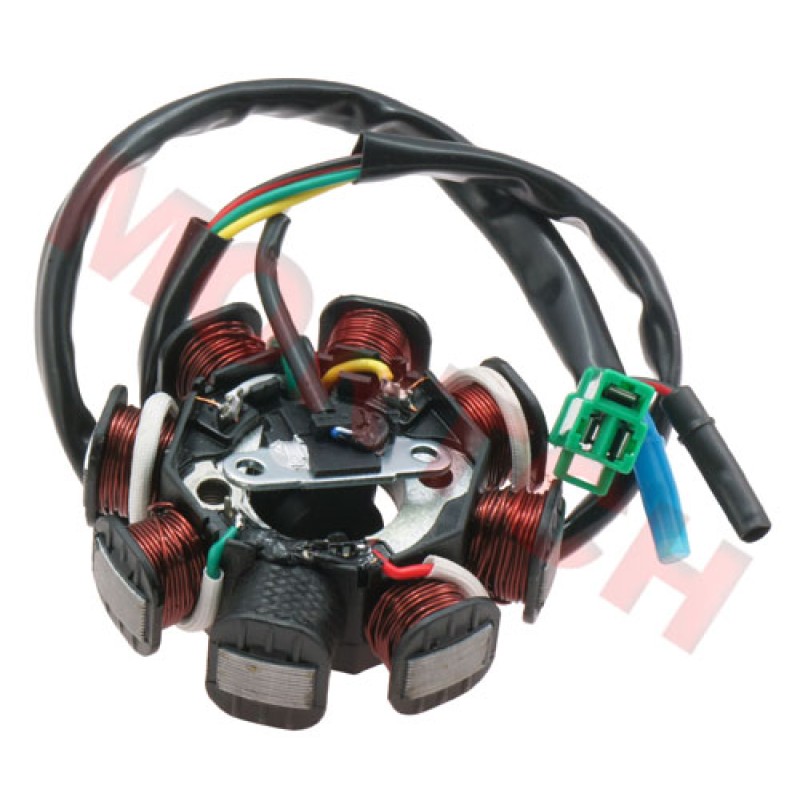

8 coil stator magneto commonly used on 4-stroke 50cc, 125cc and 150cc GY6 scooter engines. Also sometimes referred to as a stator comp.

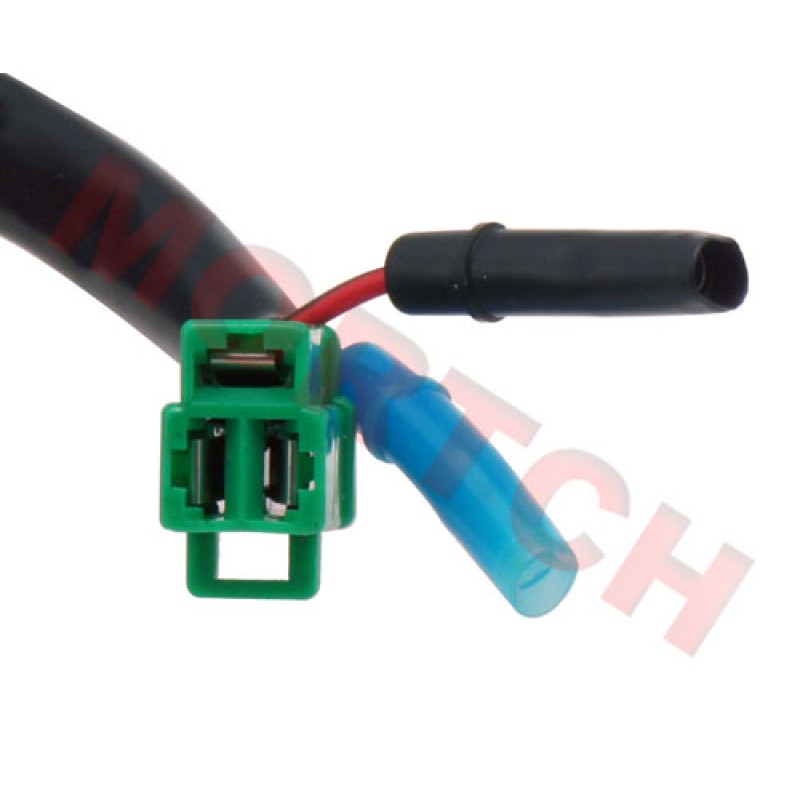

5 wires: Yellow, Green and White end in a 3 pin female plug, Red, Blue in single pin.

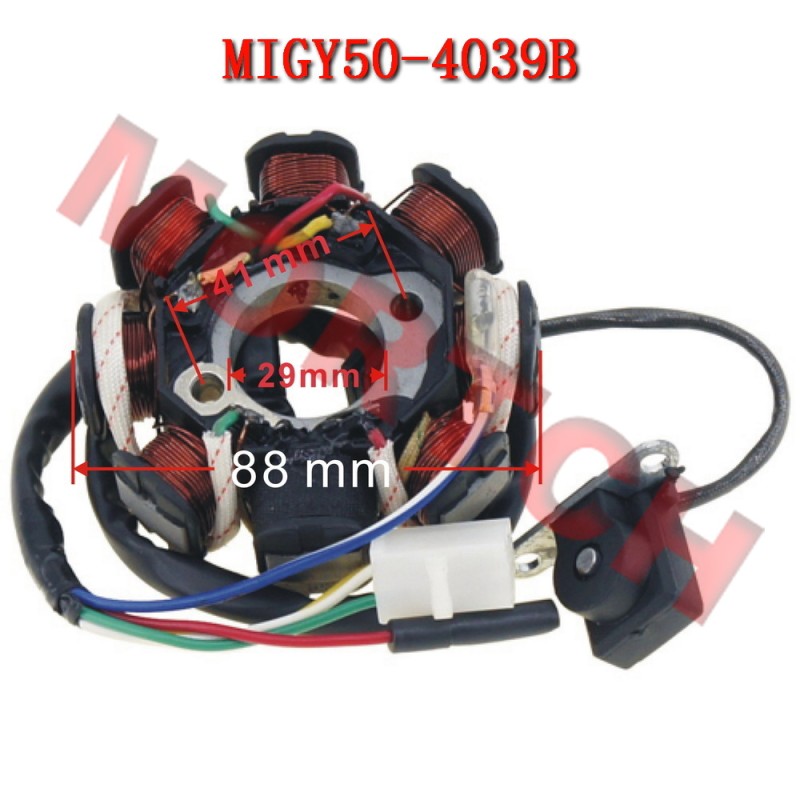

- Overall diameter: 88mm
- Center inner diameter: 29mm
- Mounting Bolts Spacing: 41mm (center to center)
Mechanics Note : 8 pole stator will work on any GY6 50cc 139QMB (and many others like 2-strokes) as long as you have a matching 8 pole flywheel rotor to go with it and have 4/5 wires. When you order a stator generator, be sure it matches the number of poles your rotor was made for. And in reverse, if you order a flywheel rotor, be sure it matches the number of poles on your stator. If you need both, order a matching 8 pole stator generator and flywheel rotor. These can come either AC or DC so be sure it fits your engines electrical system.
QTY in Box: 40PCs/CTN
- 请确认该零件适用于您的具体车型及年份。同一名称的车可能因生产年份不同而使用不同零件。
- 建议购买前核对车辆手册，或联系客服确认兼容性。
- 图片、尺寸和描述仅供参考。因生产批次或拍摄光线，实物可能存在细微差异。
- 您收到的商品在功能上符合描述，但外观可能有轻微不同。
- 运费和税费不包含在内。 买家自行承担所有额外费用。
