雅马哈400从动轮 3片

品牌： Mortch Motor
型号： MIYP400-5034A

库存：现货商品

重量： 4.52kg

尺寸： 17.00 x 17.00 x 13.00cm

0 评论 / 发表评论

¥320.00

运往：

更多运费

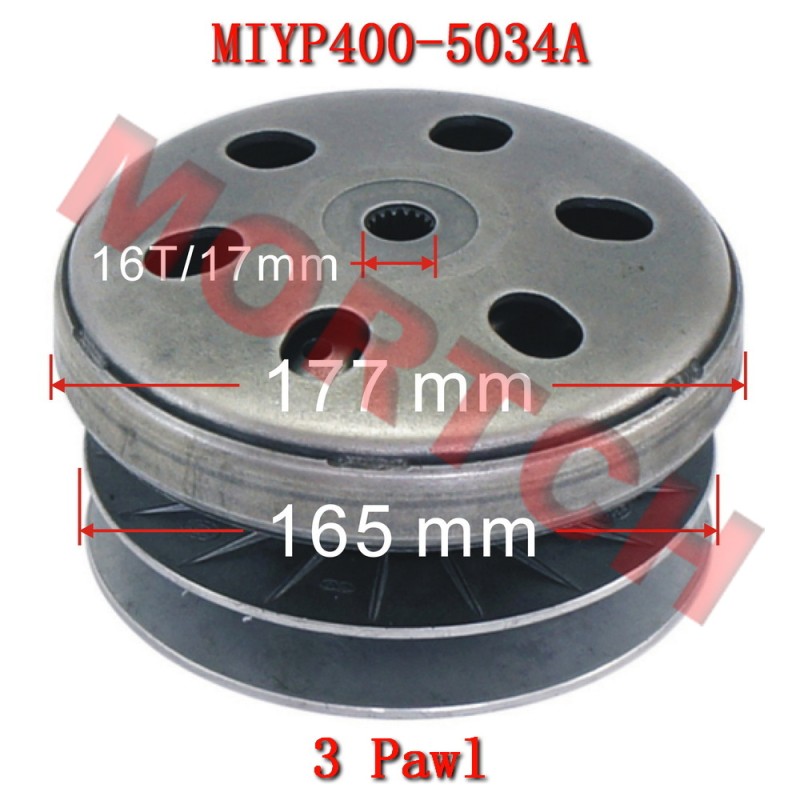

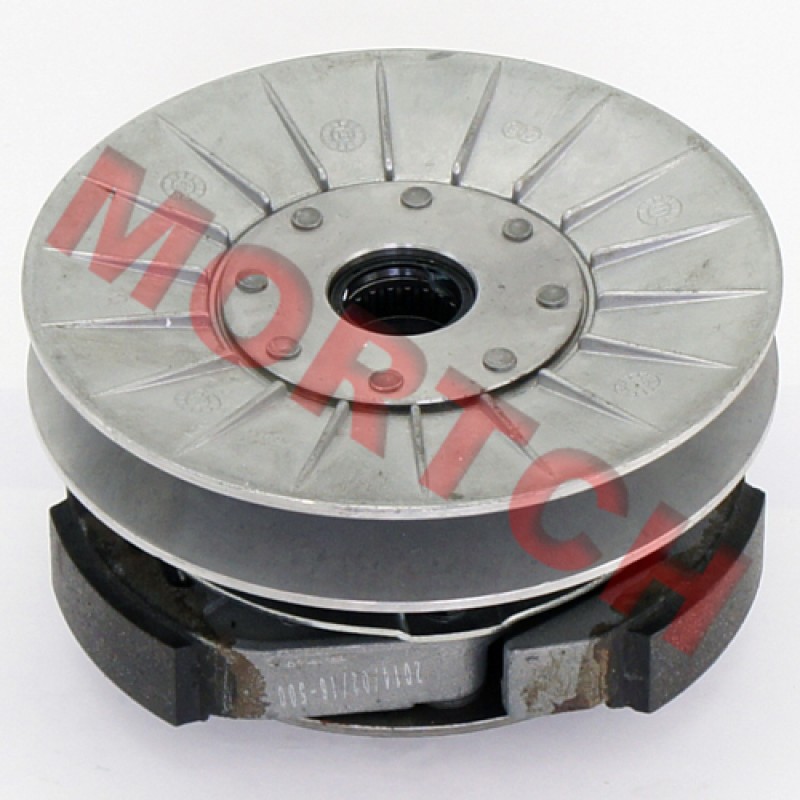

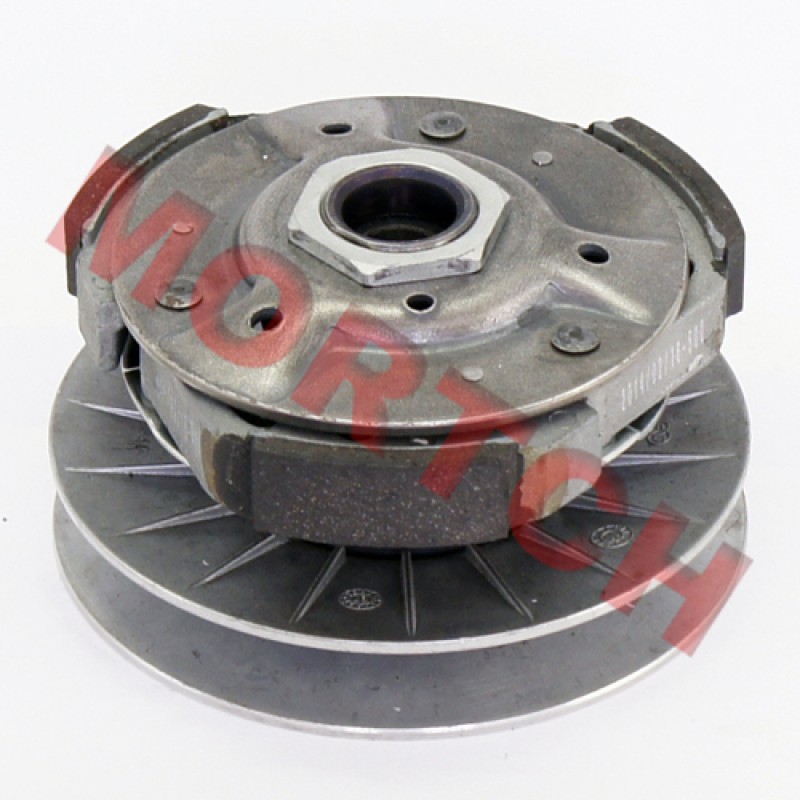

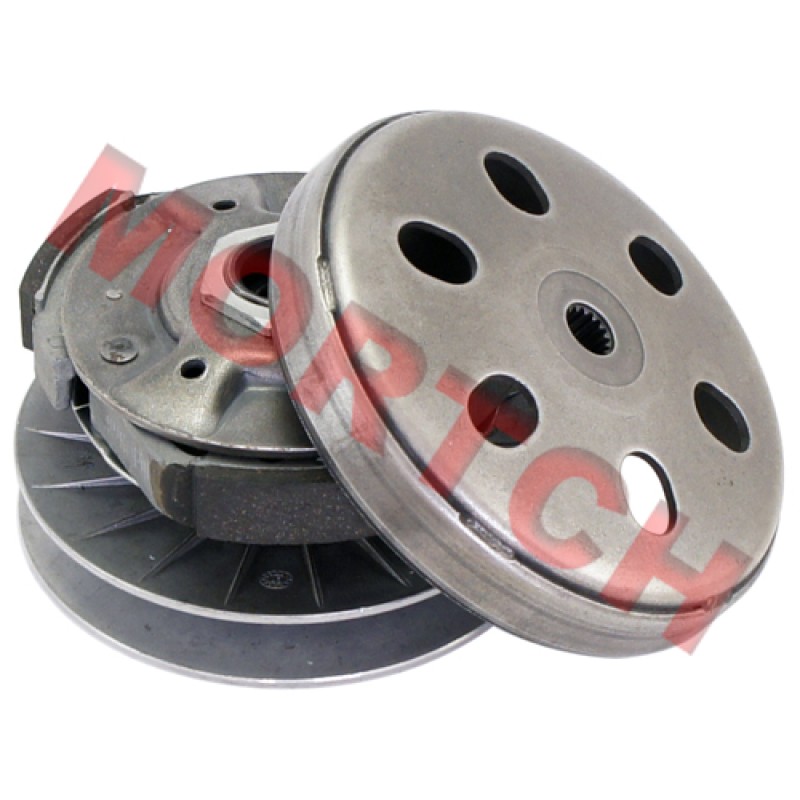

This is a completely assembled Clutch, Pulley and Bell Housing for Yamaha YP400 LH180MQ Linhai 400cc engine. This assembly includes the clutch, clutch springs, torque spring, pulley sheaves and bell housing. This is ready to install.

This is 3 pawl clutch, we have 5 pawl clutch too, currently factory no longer produce 3 pawl clutch, you can order 5 pawl clutch instead.

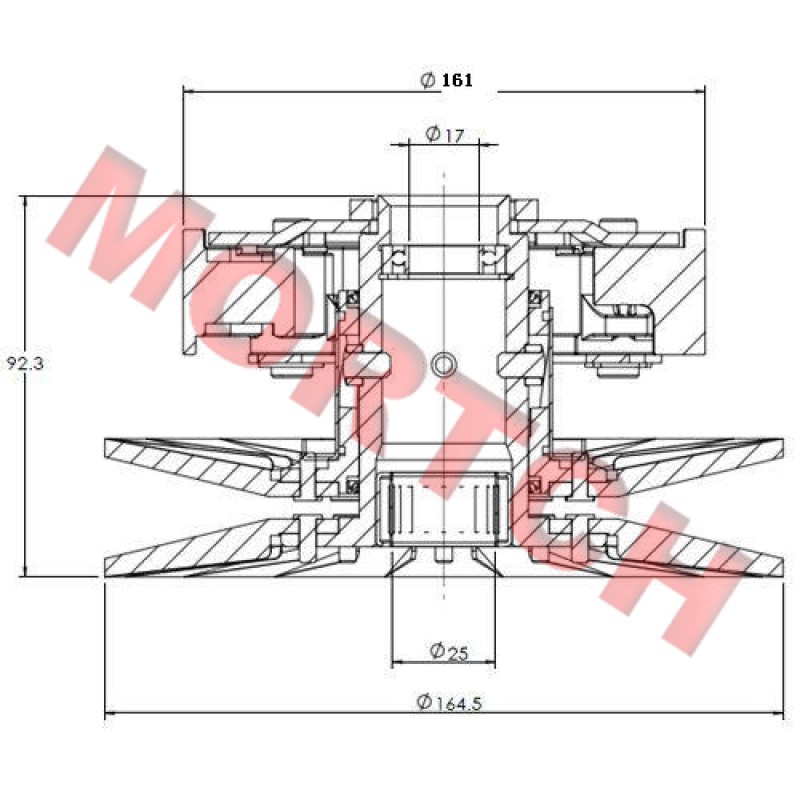

Overall Height	Biggest Outsidediameter	Shaft Diameter	Number Of Tooth
96.5	φ177	φ17 φ25	16

零件兼容性提示:

请确认该零件适用于您的具体车型及年份。同一名称的车可能因生产年份不同而使用不同零件。
建议购买前核对车辆手册，或联系客服确认兼容性。

商品免责声明:

图片、尺寸和描述仅供参考。因生产批次或拍摄光线，实物可能存在细微差异。
您收到的商品在功能上符合描述，但外观可能有轻微不同。

税与额外费用:

运费和税费不包含在内。买家自行承担所有额外费用。

标签: Plate assy of Drive, Variators, flywheel
