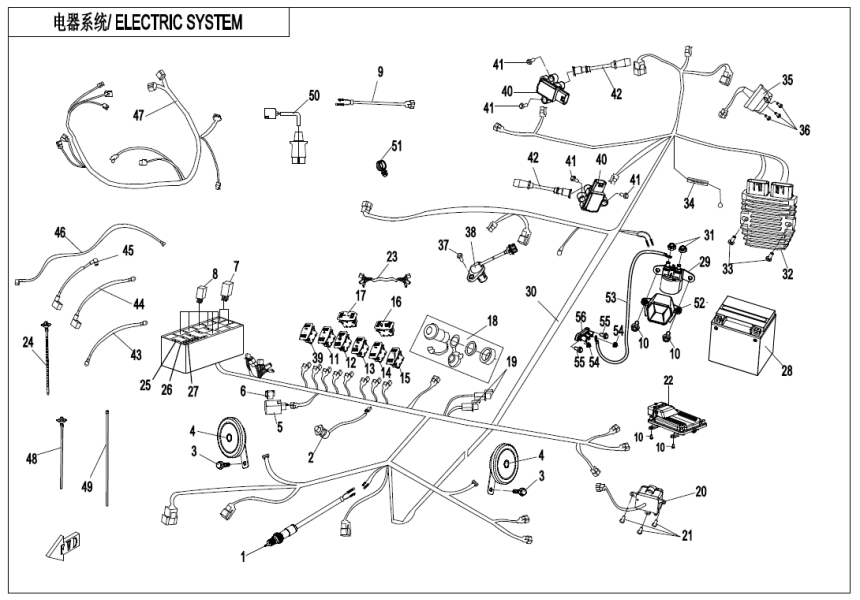

ELECTRIC SYSTEM
If you are unable to find the corresponding parts for the catalog, please contact us.
| Image/No | Product | Price |
|---|---|---|
| 01 |
Switch, Rear Brake
|
|
| 05 |
Flasher
|
|
| 07 |
Auxiliary Relay
|
|
| 08 |
Auxiliary Relay
|
|
| 11 |
Overriding Switch
|
|
| 12 |
Horn Switch
|
|
| 13 |
Dimmer Switch
|
|
| 14 |
Illumination Switch
|
|
| 14 |
Illumination Switch
|
|
| 15 |
Alarm Switch
|
|
| 16 |
Engine Stop Switch
|
|
| 16 |
Engine Stop Switch
|
|
| 17 |
Turn Light Switch
|
|
| 17 |
Turning Switch
|
|
| 18 |
Power Output Seat
|
|
| 29 |
Starter Relay
|
|
| 31 |
Nut M6*1.0
|
|
| 32 |
EFI Rectifier - Voltage Regulator - 330W
|
|
| 32 |
EFI Rectifier - Voltage Regulator - 400-650W
|
|
| 37 |
Bolt M6*1.0*20
|
|
| 38 |
Speed Sensor, RPM
|
|
| 39 |
Switch, High-Beam Light
|
|
| 40 |
EFI Ignition Coil
|
|
| 42 |
High-Tension Cable
|
|
| 51 |
Front Brake Fluid Hose Wire Clip
|
