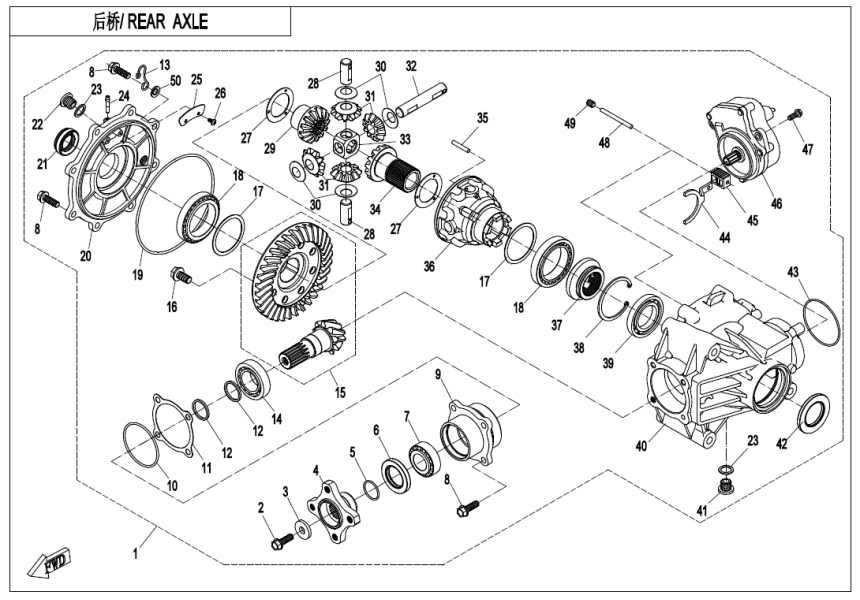

REAR AXLE(WITH DIFFERENTIAL)

If you are unable to find the corresponding parts for the catalog, please contact us.

Image/No	Product	Price
01	Rear Gear Case Assy - Model: MICFQ820-330000-00002 - Stock：In Stock	¥2,200.00
04	Coupler - Model: MICFQ850-331002 - Stock：In Stock	¥70.00
05	O-Seal Ring for Axle 25x2 - Model: MICF0800-062205 - Stock：In Stock	¥3.00
06	Oil Seal 35x50x7 - Model: MICF0800-062204 - Stock：In Stock	¥20.00
07	Bearing 33005 for Front Rear Axle - Model: MICF30409-02500 - Stock：In Stock	¥55.00
08	Bolt M8x28 - Model: MICF0JYA-062104 - Stock：In Stock	¥1.50
09	Bearing Seat - Model: MICFQ830-311002-00001 - Stock：Pre-Order	¥76.50
10	O-Seal Ring for Axle 55x2.5 - Model: MICFQ830-310006-10000 - Stock：In Stock	¥5.00
14	Bearing 32006 for Front Rear Axle - Model: MICF30409-03000 - Stock：In Stock	¥50.00
15	Bevel Gear Assy, Rear Gear Case - Model: MICFQ820-3300B0 - Stock：Pre-Order	¥622.00
16	Bolt M10x1.25x22 - Model: MICF0181-313100-0010 - Stock：In Stock	¥9.00
18	Bearing 32910 for Front Rear Axle - Model: MICF30409-05000 - Stock：In Stock	¥100.00
19	O-Ring 141x2.4 - Model: MICF0180-310005 - Stock：In Stock	¥4.00
21	Oil Seal 24x38x8 - Model: MICF0180-311001 - Stock：In Stock	¥8.00
22	Bolt M14x1.25x12 - Model: MICF0180-021008-0001 - Stock：In Stock	¥5.00
23	Gasket 14 - Model: MICF0180-011006 - Stock：In Stock	¥2.00
30	Wearing Ring - Model: MICF0181-313011 - Stock：In Stock	¥5.00
31	Front Differential Middle Gear - Model: MICF0180-313003-00004 - Stock：In Stock	¥32.00
33	Cross Bushing for Front Differential - Model: MICFQ820-333008 - Stock：Pre-Order	¥24.00
38	Circlip For Hole 62 - Model: MICF30800-06200 - Stock：Pre-Order	¥2.00
41	Oil Drain Bolt M14X1.25X12, Magnetic - Model: MICF0180-332100 - Stock：In Stock	¥12.00
42	Oil Seal 24x38x8 - Model: MICF0120-061000 - Stock：In Stock	¥15.00
43	O-Seal Ring 67.5 x 2 - Model: MICFQ830-310012-10000 - Stock：In Stock	¥5.00
46	Front Axle Motor Assy - Model: MICFQ830-314000 - Stock：In Stock	¥220.00
