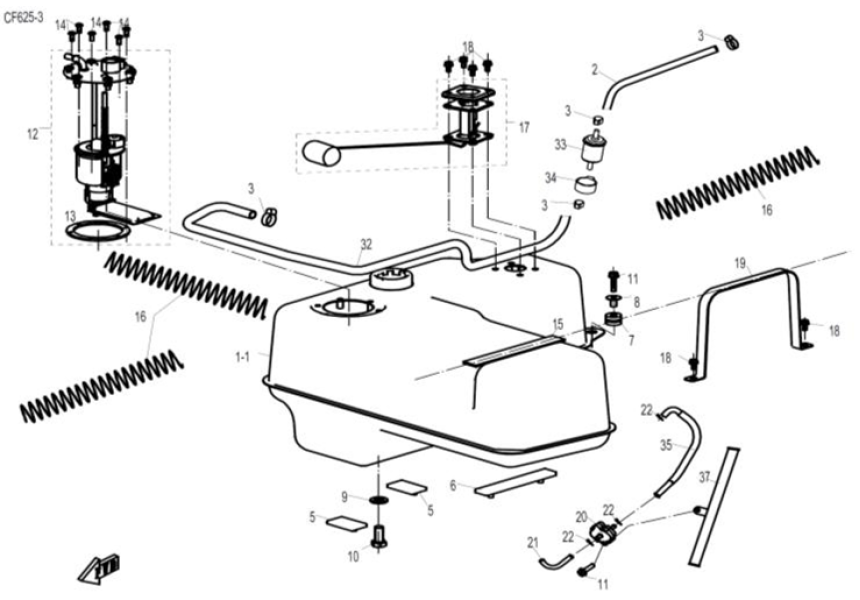

FUEL TANK
The Fuel pump assy includes fuel pump, plastic support, preliminary filter, fine filter and pressure regulator. It supplies fuel for engine under a certain pressure and flow.
Parameters:
- ● This fuel pump is located in fuel tank.
- ● Do not operate the fuel pump in dry condition in order to prevent damage.
- ● Always handle the fuel pump gently.
Never drop the fuel pump, especially on a hard surface. Such a shock to pump can caused damage.
Fuel Pump Wiring
Battery supplies power for fuel pump assembly via fuel pump relay, which connects the fuel pump circuit only with engine started.
Fuel Pressure Test:
- Connect the fuel pressure gauge with fuel outlet and tighten the joint with a clamp to prevent fuel leaks.
- Route accords to the right circuit.
- Turn both ignition switch engine stop switch on;
- At this moment, fuel pump will operate for 5 seconds. After the fuel pump stops running, fuel pressure should be in specification, otherwise, replace it.
Pressure Specification: After fuel pump stops running, the holding pressure should be at 0.25MPa for at least 5 minutes, otherwise, replace it.
If you are unable to find the corresponding parts for the catalog, please contact us.
| Image/No | Product | Price |
|---|---|---|
|
Front License Plate Bracket Rubber
|
|
|
Fuel Pump Z6
|
|
|
EFI Fuel Filter Rubber Sleeve
|
|
|
Fuel Filter
|
