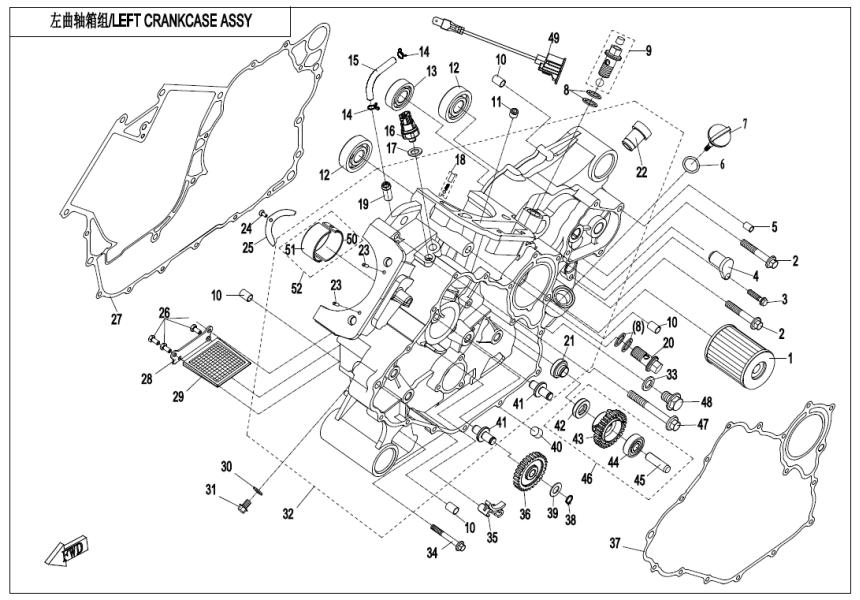

LEFT CRANKCASE ASSY
Crankcase Bearing Matching Diagram
Red
Crankcase Mark A
Blue
Crankcase Mark B
If you are unable to find the corresponding parts for the catalog, please contact us.
| Image/No | Product | Price |
|---|---|---|
|
Oil Filter
|
|
|
Seal Plug
|
|
|
O-Ring 18x3.55 for Oil Dip Rod
|
|
|
Oil Dip Rod
|
|
|
Gasket 14
|
|
|
Dowel Pin, Φ10 x 14
|
|
|
Bearing 6303 for Left Crankcase
|
|
|
Bearing 6203 for Left Crankcase
|
|
|
Oil Pressure Switch
|
|
|
Oil Pressure Switch
|
|
|
Needle Pin P5 x 11.8
|
|
|
Crankcase Thrust Washer
|
|
|
Crankcase Gasket
|
|
|
Oil Strainer
|
|
|
Drain Screw Plug Washer 12
|
|
|
Timing Chain Lower Guide
|
|
|
Breather Idle Gear
|
|
|
Left Crankcase Cover Gasket
|
|
|
Breather Idle Gear Shaft
|
|
|
Oil Seal 15x26x6
|
|
|
Breather Gear
|
|
|
Breather Shaft
|
|
|
Breather Assy
|
|
|
Drain Bolt
|
|
|
Bearing Sleeve, Red
|
|
|
Bearing Sleeve, Blue
|
|
| 02 | MICF0040-012006-0010 | |
| 03 | MICF0010-090005-0010 | |
| 05 | MICF0010-080008 | |
| 09 | MICF0800-011500 | |
| 11 | MICF0800-011013 | |
| 14 | MICF30601-114010 | |
| 15 | MICF0010-013007 | |
| 17 | MICF0010-060010 | |
| 18 | MICF0800-011400 | |
| 19 | MICF0010-013006-0010 | |
| 20 | MICF0180-011007-0010 | |
| 21 | MICF0800-011105 | |
| 22 | MICF0800-011106 | |
| 24 | MICF30122-040010850 | |
| 26 | MICF0180-014004-00100 | |
| 27 | MICF0800-011001 | |
| 28 | MICF0800-011008-1000 | |
| 30 | MICF0010-023305 | |
| 31 | MICF0180-332002-0010 | |
| 32 | MICF0800-011100-20010 | |
| 32 | MICF0800-011100-20020 | |
| 34 | MICF0010-021018-0010 | |
| 38 | MICF30801-01005 | |
| 39 | MICF0800-011005 | |
| 40 | MICF0800-011006 | |
| 42 | MICF0800-011203 | |
| 44 | MICF30400-01003 | |
| 47 | MICF0130-011109-0010 | |
| 48 | MICF0180-011500 | |
| 49 | MICF0800-012401 | |
| 50 | MICF0800-011103-0001 | |
| 50 | MICF0800-011103-0002 | |
| 51 | MICF0800-011102-0001 | |
| 51 | MICF0800-011102-0002 | |
