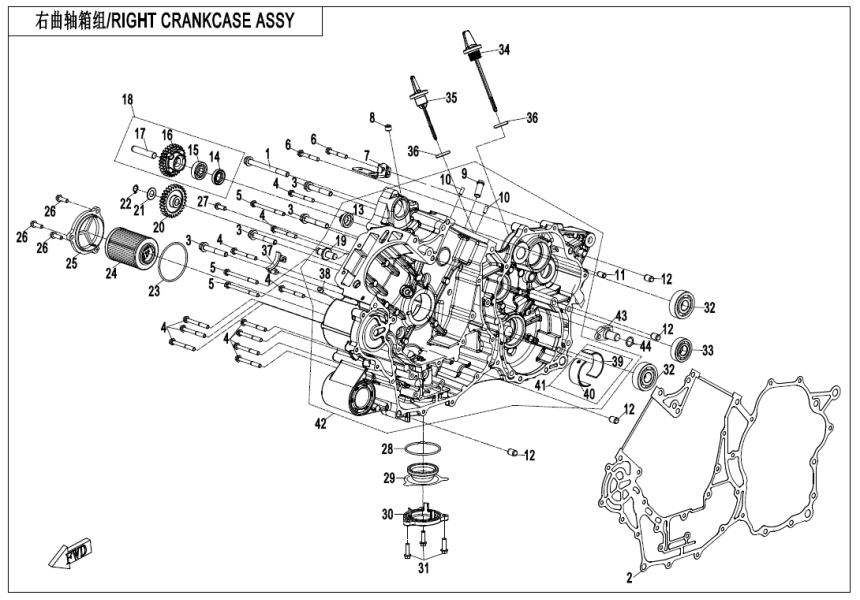

RIGHT CRANKCASE ASSY
If you are unable to find the corresponding parts for the catalog, please contact us.
| Image/No | Product | Price |
|---|---|---|
|
Crankcase Gasket
|
|
|
Bolt M6*50
|
|
|
Needle Pin P5 x 11.8
|
|
|
Dowel Pin, Φ10 x 14
|
|
|
Oil Seal 15x26x6
|
|
|
Breather Gear
|
|
|
Breather Shaft
|
|
|
Breather Assy
|
|
|
Breather Idle Gear Shaft
|
|
|
Breather Idle Gear
|
|
|
O-Ring 63x2.5 for Oil Filter Cap
|
|
|
Oil Filter
|
|
|
Oil Filter Cap
|
|
|
O-Seal Ring for Axle 55x2.5
|
|
|
Strainer Assy
|
|
|
Oil Strainer Cover
|
|
|
Bearing 6203 for Left Crankcase
|
|
|
Oil Dipstick
|
|
|
Engine Oil Dipstick
|
|
|
O-Ring 18x3.55 for Oil Dip Rod
|
|
|
Timing Chain Lower Guide
|
|
|
Bearing Sleeve, Blue
|
|
|
Crankshaft Speedometer Sensor
|
|
|
O-Seal Ring 13x2
|
|
| 01 | MICF0JWV-010015-3000 | |
| 03 | MICF0040-012006-0010 | |
| 05 | MICF0020-011018-00001 | |
| 06 | MICF0010-013009-0010 | |
| 07 | MICF0JWV-012108-3000 | |
| 08 | MICF01A0-012010-00001 | |
| 09 | MICF0010-013006-0010 | |
| 11 | MICF0010-080008 | |
| 13 | MICF0JWV-011105-3000 | |
| 15 | MICF30400-01003 | |
| 21 | MICF0800-011005 | |
| 22 | MICF30801-01005 | |
| 26 | MICF0010-023008-00001 | |
| 27 | MICF0010-090005-0010 | |
| 31 | MICF0010-023010-0010 | |
| 32 | MICF30499-01700 | |
| 38 | MICF0800-011400-00001 | |
| 39 | MICF0JWV-011102-3000-Q0-00001 | |
| 39 | MICF0JWV-011102-3000-Q0-00002 | |
| 40 | MICF0JWV-011103-3000-Q0-00001 | |
| 40 | MICF0JWV-011103-3000-Q0-00002 | |
| 42 | MICF0JWF-0121A0 | |
