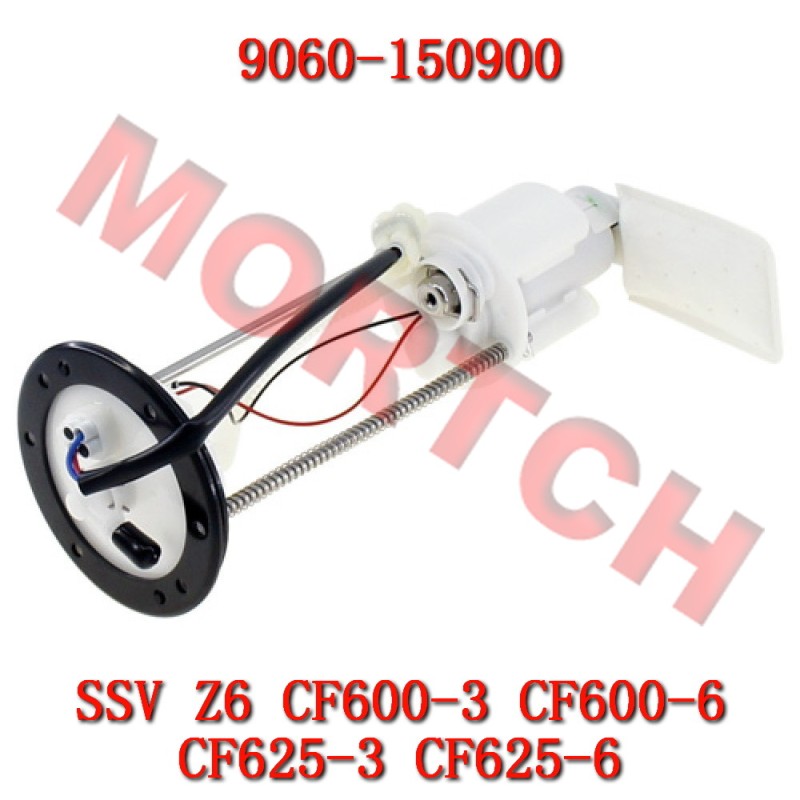

燃油泵总成Z6 30cm

CF Moto的代码为9060-150900

• Total length about 30cm

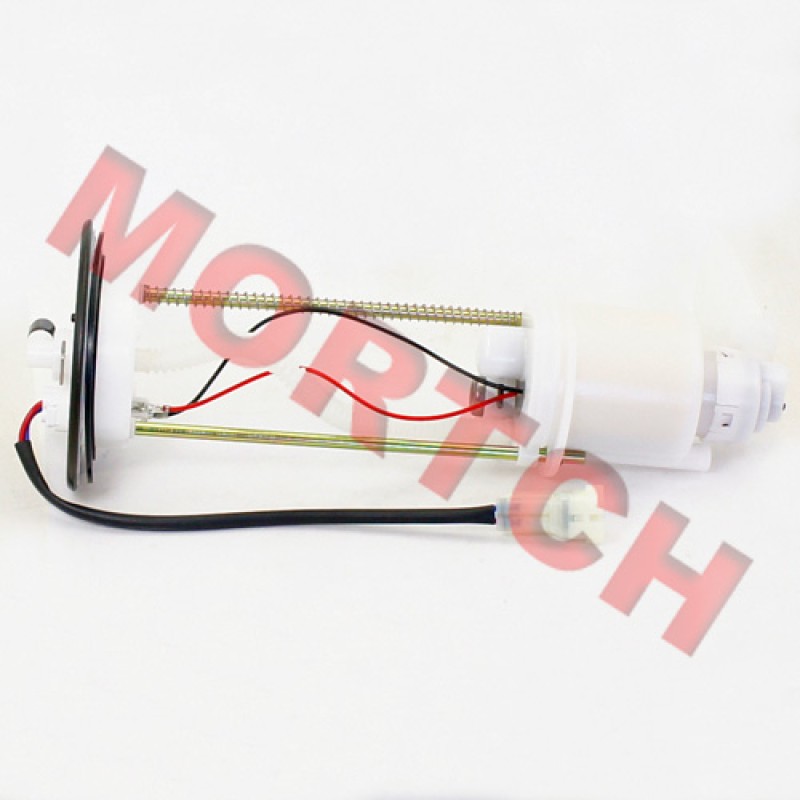

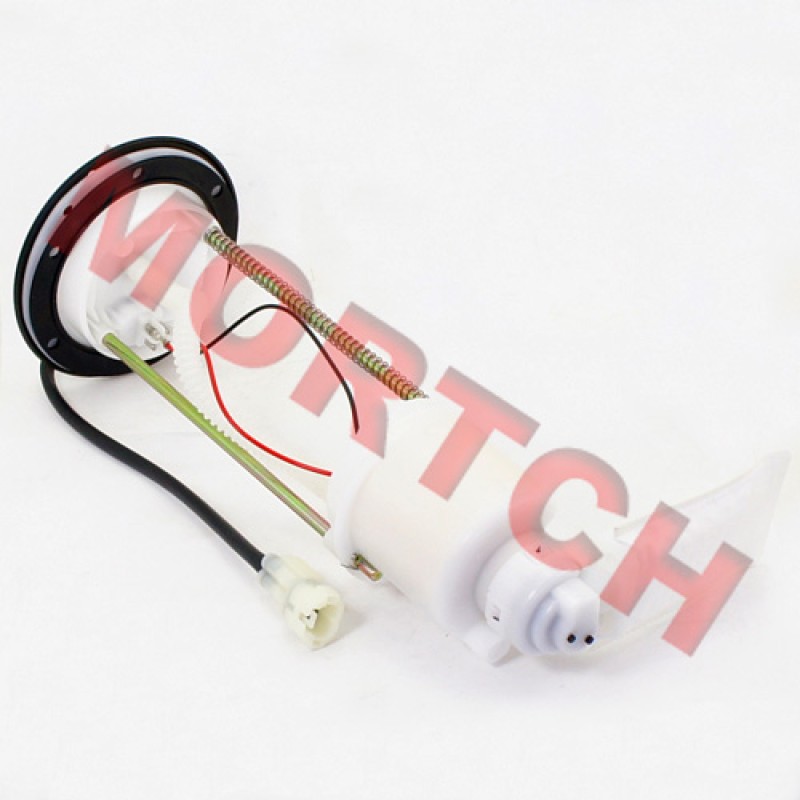

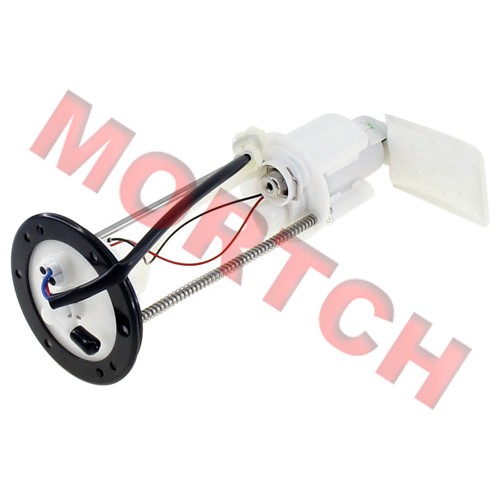

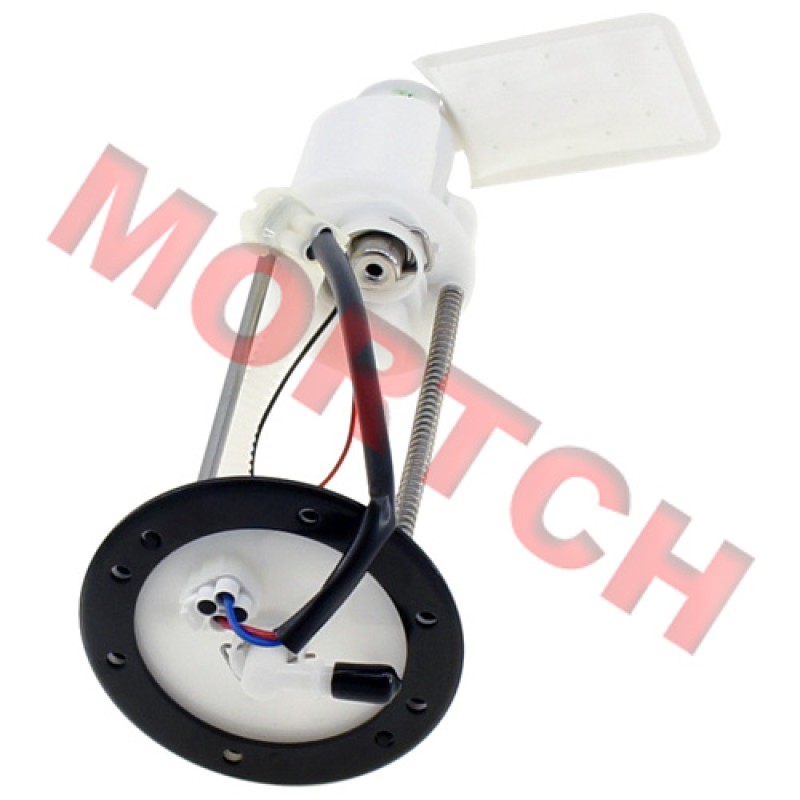

This fuel pump assembly includes fuel pump, plastic support, preliminary filter, fine filter and pressure regulator. It supplies fuel for engine under a certain pressure and flow.
This fuel pump is located in fuel tank.

• Don't operate the fuel pump in dry condition in order to prevent damage.
• Always handle the fuel pump gently.
• Never drop the fuel pump, especially on a hard surface.
• Battery supplies power for fuel pump assembly via fuel pump relay, which connects the fuel pump circuit only with the engine started.

Fuel pressure test:

• Connect the fuel pressure gauge with fuel outlet and tighten the joint with a clamp to prevent fuel leaks.
• Route according to the right circuit.
• Turn both ignition switch engine stop switch on.
• At this moment, fuel pump will operate for 5 seconds. After the fuel pump stops running, fuel pressure should be in specification. Otherwise, replace it.
• After the engine stops running,0.25MPa fuel pressure should be kept for more than 5 minutes. Otherwise, replace the fuel pump.

本商品可适用于

• SSV  2012  CF600-3  Z6
• SSV  2013  CF600-3  Z6
• SSV  2014  CF600-3  Z6
• SSV  2015  CF600-3  Z6
• SSV  2012  CF600-6  Z6
• SSV  2013  CF600-6  Z6
• SSV  2010  CF625-3  Z6
• SSV  2011  CF625-3  Z6
• SSV  2012  CF625-3  Z6
• SSV  2013  CF625-3  Z6
• SSV  2014  CF625-3  Z6
• SSV  2015  CF625-3  Z6
• SSV  2016  CF625-3  Z6
• SSV  2011  CF625-6  Z6
• SSV  2012  CF625-6  Z6
• SSV  2013  CF625-6  Z6
• SSV  2014  CF625-6  Z6
• SSV  2015  CF625-6  Z6
• SSV  2016  CF625-6  Z6
