Timing Chain Guide
- Brand: Mortch Motor
- Product Code: MICF0180-023A00
- Product Viewed: 13
- Availability: In Stock
- Weight: 0.22kg
¥66.00
| Shipping To： |
CFMoto listed parts number is

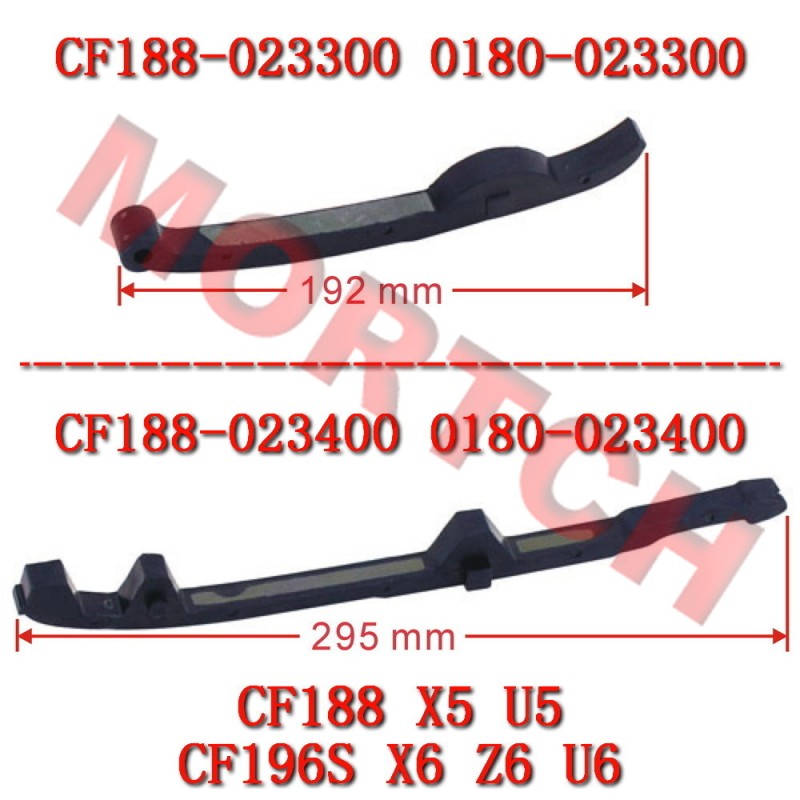

- CF188-023400 0180-023400 Timing Chain Guide
- CF188-023300 0180-023300 Tensioner Plate
Linhai listed parts number is

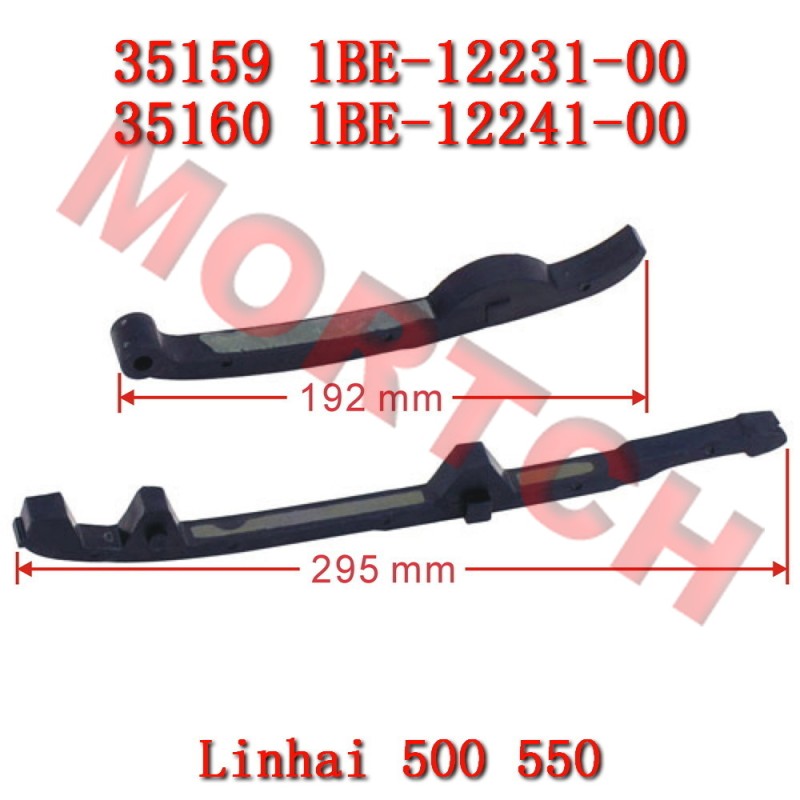

- 35159 1BE-12231-00 Timing Chain Guide
- 35160 1BE-12241-00 Tensioner Plate
This may fits
- ATV CF500 X5 CF188
- ATV CF500-2 X5 CF188
- ATV CF500-2A X5 CF188
- ATV CF500-5 X5 CF188
- ATV CF500-5A X5 CF188
- ATV CF500-5B X5 CF188-B
- ATV CF500-5C X5 CF188-B
- ATV CF500-A X5 CF188
- ATV CF500-B X5 CF188
- ATV CF500-C X5 CF188
- ATV CF500-D X5 CF188
- ATV CF500-E X5 CF188
- UTV CF500-3 UForce 500 U5 CF188-A
- ATV CF600-B X6 196S-B(X6)
- ATV CF600-C X6 196S-B(X6)
- ATV CF625-2 X6 196S-B(X6)
- ATV CF625-2A X6 196S-B(X6)
- ATV CF625-B X6 196S-B(X6)
- ATV CF625-C X6 196S-B(X6)
- UTV CF600-5 UForce U6 196S-B(U6)
- SSV CF600-3 Z6 196S-C
- SSV CF600-6 Z6 196S-C
- SSV CF625-3 Z6 196S-C
- SSV CF625-6 Z6 196S-C
- Please verify that this parts fits your specific vehicle model and year. Many vehicle share the same name but may use different parts depending on the manufacturing year.
- We strongly recommend cross-checking with your vehicle's manual or contacting us for confirmation before purchasing.
- Photos, measurements, and descriptions are for reference only. Minor variations may exist due to manufacturing batches or lighting conditions.
- The actual product you receive may differ slightly in appearance but will match the functional specifications.
- Prices listed do NOT include import duties, taxes, or customs clearance fees.
- Buyers are fully responsible for any additional charges imposed by their local customs.
Thank You
