LCD Dashboard
LCD Dashboard  LCD Dashboard  LCD Dashboard  LCD Dashboard

LCD Dashboard

  • Brand: Mortch Motor
  • Product Code: MICF9GQ0-170110-00002
  • Product Viewed: 13
    •
  • Availability: In Stock
  • Weight: 0.40kg
    •

0 reviews / Write a review

  • ¥400.00


Shipping To：
More Quotes
Qty

Buy Now

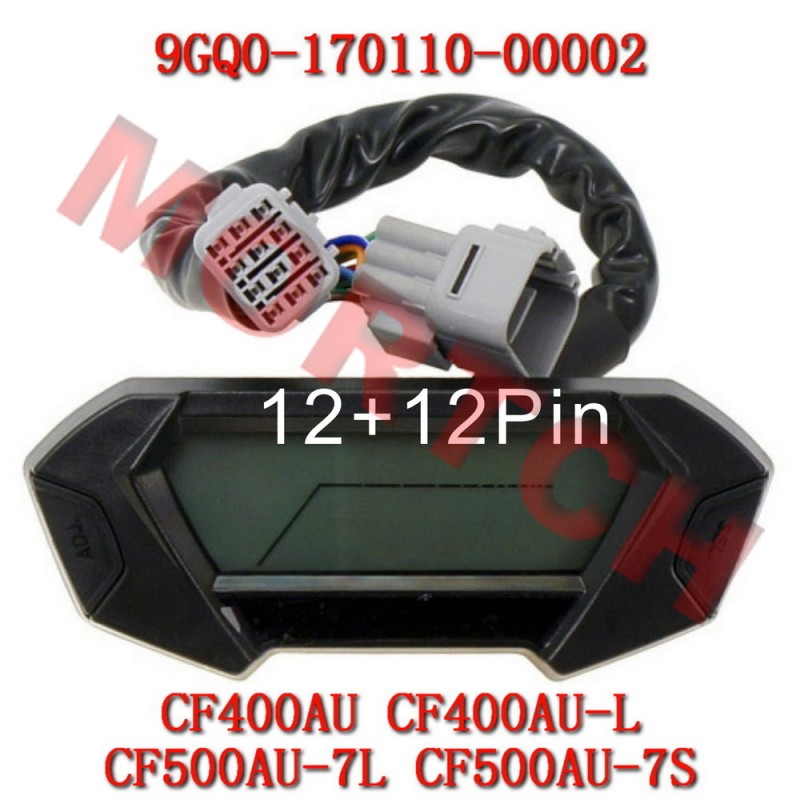

CF Moto listed parts number is 9GQ0-170110-00002

  • Plug: 12+12
  • 1 - Tail Lamp ON. Illuminates when the headlight switch is in this position.
  • 2 - High Beam ON. Illuminates when the headlight switch is in this position.
  • 3 - Gear selector in Park. Illuminates when the gear selector is shifted to the parking position.
  • 4 - Gear selector in Neutral illuminates when the gear selector is shifted to the NEUTRAL position.
  • 5 - EPS Fault (This ATV is not equipped with EPS).
  • 6 - EFI Fault. This indicator light comes on when a fault occurs in the Electronic Fuel Injection system.
  • 7 - Speed Limit Override. This indicator light comes on when pressing the override switch on the left-hand control. Always exercise caution when using the override button.
  • 8 - Gear Position ‘R-H-L’. This dashboard section displays the following letters that correspond to gear selection: ‘R’= Reverse; ‘H’= High Gear; ‘L’= Low Gear.
  • 9 - Engine Temperature. This dashboard section displays the current coolant temperature, ‘C’ is low temperature, ‘H’ is high temperature, Both over-low and over-high are abnormal. Idle the vehicle to warm the engine when it's too cold, and park the vehicle when it's too hot to prevent the coolant from boiling. Keep the coolant temperature in a normal range.
  • 10 - Fuel Gauge. This dashboard section displays the current gas remaining in the tank. ‘F’ indicates full. ‘E’ indicates stand-by fuel. When the indicator enters the red area, the fuel that remains could last (at slow speed on level ground) for up to 50Km (31 Miles). Fuel must be added as soon as possible.
  • 11 - Odometer / Trip/ Rpm / Volt / Brightness Display. This dashboard section can be toggled using the ‘SEL’ button to display the accumulated distance traveled in miles/kilometers; ‘ODO’ -The accumulated vehicle distance traveled, ‘TRIP’ - The trip distance traveled, ‘RPM’ – The engine speed in Revolutions Per Minute (RPM), ‘V’ – Battery voltage, ‘L-I-g-H—8’ - Dashboard brightness (8 levels).
  • 12 - Speedometer. This dashboard section can be toggled to display the vehicle speed in Kilometers per hour (Km/h) or Miles Per Hour (MPH).
  • 13 - Clock. This dashboard section can be adjusted to the correct time using the ‘ADJ’ button.
  • 14 - Oil Pressure Warning. This dashboard section displays when the engine oil pressure is abnormal, and is off when oil pressure is normal.
  • 15 - 4WD Indicator. This dashboard section corresponds to the drive method chosen on the right-hand control. The front differential contains the synchronizing component that signals the display.

This may fits

  • ATV  2014  CF400AU  CForce 400S/450S
  • ATV  2015  CF400AU  CForce 400S/450S
  • ATV  2016  CF400AU  CForce 400S/450S
  • ATV  2017  CF400AU  CForce 400S/450S
  • ATV  2018  CF400AU  CForce 400S/450S
  • ATV  2019  CF400AU  CForce 400S/450S
  • ATV  2020  CF400AU  CForce 400S/450S
  • ATV  2021  CF400AU  CForce 400S/450S
  • ATV  2022  CF400AU  CForce 400S/450S
  • ATV  2021  CF400AU(AU)  CForce 400S
  • ATV  2020  CF400AU(CA)  CForce 400S
  • ATV  2021  CF400AU(CA)  CForce 400S
  • ATV  2022  CF400AU(CA)  CForce 400S
  • ATV  2019  CF400AU(US)  CForce 400S
  • ATV  2020  CF400AU(US)  CForce 400S
  • ATV  2021  CF400AU(US)  CForce 400S
  • ATV  2022  CF400AU(US)  CForce 400S
  • ATV  2014  CF400AU-L  CForce 400L/450L
  • ATV  2015  CF400AU-L  CForce 400L/450L
  • ATV  2016  CF400AU-L  CForce 400L/450L
  • ATV  2017  CF400AU-L  CForce 400L/450L
  • ATV  2018  CF400AU-L  CForce 400L/450L
  • ATV  2019  CF400AU-L  CForce 400L/450L
  • ATV  2020  CF400AU-L  CForce 400L/450L
  • ATV  2021  CF400AU-L  CForce 400L/450L
  • ATV  2022  CF400AU-L  CForce 400L/450L
  • ATV  2020  CF400AU-L(CA)  CForce 400L/450L
  • ATV  2021  CF400AU-L(CA)  CForce 400L/450L
  • ATV  2022  CF400AU-L(CA)  CForce 400L/450L
  • ATV  2021  CF400AU-L(RU)  CForce 400L/450L
  • ATV  2016  CF500AU-7L  CForce 520L
  • ATV  2017  CF500AU-7L  CForce 520L
  • ATV  2018  CF500AU-7L  CForce 520L
  • ATV  2019  CF500AU-7L  CForce 520L
  • ATV  2020  CF500AU-7L  CForce 520L
  • ATV  2021  CF500AU-7L  CForce 520L
  • ATV  2022  CF500AU-7L  CForce 520L
  • ATV  2016  CF500AU-7S  CForce 520 S
  • ATV  2017  CF500AU-7S  CForce 520 S
  • ATV  2018  CF500AU-7S  CForce 520 S
  • ATV  2019  CF500AU-7S  CForce 520 S
  • ATV  2020  CF500AU-7S  CForce 520 S
  • ATV  2021  CF500AU-7S  CForce 520 S
  • ATV  2022  CF500AU-7S  CForce 520 S
  • ATV  2021  CF500AU-7S(AU)  CForce 520 S
  • ATV  2020  CF500AU-7S(CA)  CForce 520 S
  • ATV  2021  CF500AU-7S(CA)  CForce 520 S
  • ATV  2022  CF500AU-7S(CA)  CForce 520 S
  • ATV  2019  CF500AU-7S(US)  CForce 500S
  • ATV  2020  CF500AU-7S(US)  CForce 500S
  • ATV  2021  CF500AU-7S(US)  CForce 500S
  • ATV  2022  CF500AU-7S(US)  CForce 500S
Compatibility Notice:
  • Please verify that this parts fits your specific vehicle model and year. Many vehicle share the same name but may use different parts depending on the manufacturing year.
  • We strongly recommend cross-checking with your vehicle's manual or contacting us for confirmation before purchasing.
Product Disclaimer:
  • Photos, measurements, and descriptions are for reference only. Minor variations may exist due to manufacturing batches or lighting conditions.
  • The actual product you receive may differ slightly in appearance but will match the functional specifications.
Import Fees & Taxes:
  • Prices listed do NOT include import duties, taxes, or customs clearance fees.
  • Buyers are fully responsible for any additional charges imposed by their local customs.
