Clutch Carrier Assy
- Brand: Mortch Motor
- Product Code: MICF0180-054000-2000
- Product Viewed: 54
- Availability: Out Of Stock
- Weight: 1.70kg
¥350.00
| Shipping To： |
More Quotes
CF Moto 500cc ATV listed parts number is 0180-054000 with old part number listed as CF188-054000
- CF188-054005 0180-054005 Retainer
- CF188-054002 0180-054002 Side Washer
- CF188-054004 0180-054004 Washer
- CF188-054003 0180-054003 Spring Seat
- CF188-054001 0180-054001 Return Spring, Clutch
- CF188-054200 0180-054200 Pawl Assy.
- CF188-054100 0180-054100 Fixed Plate Assy.

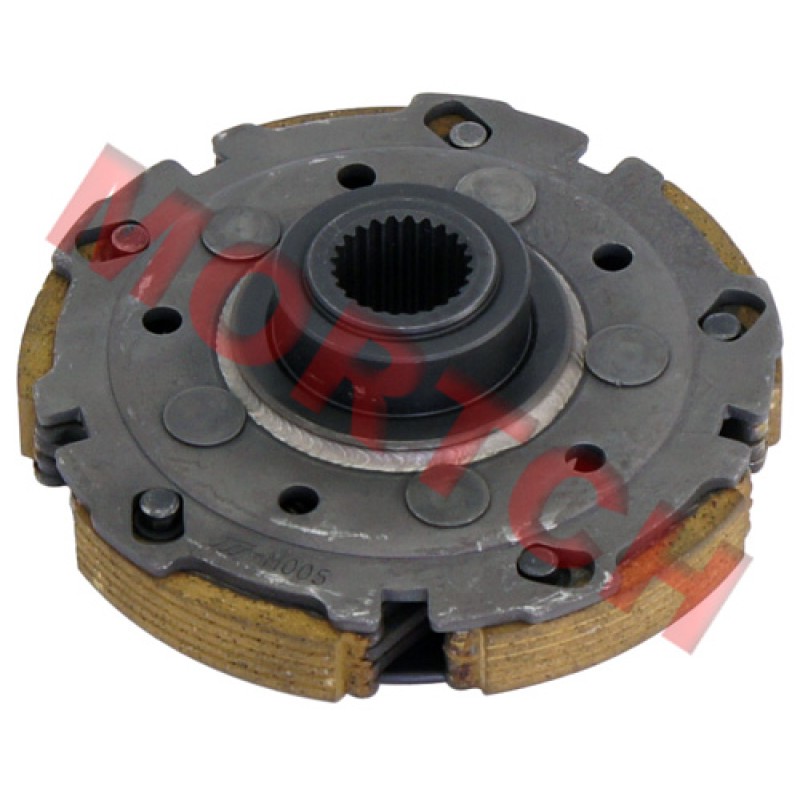

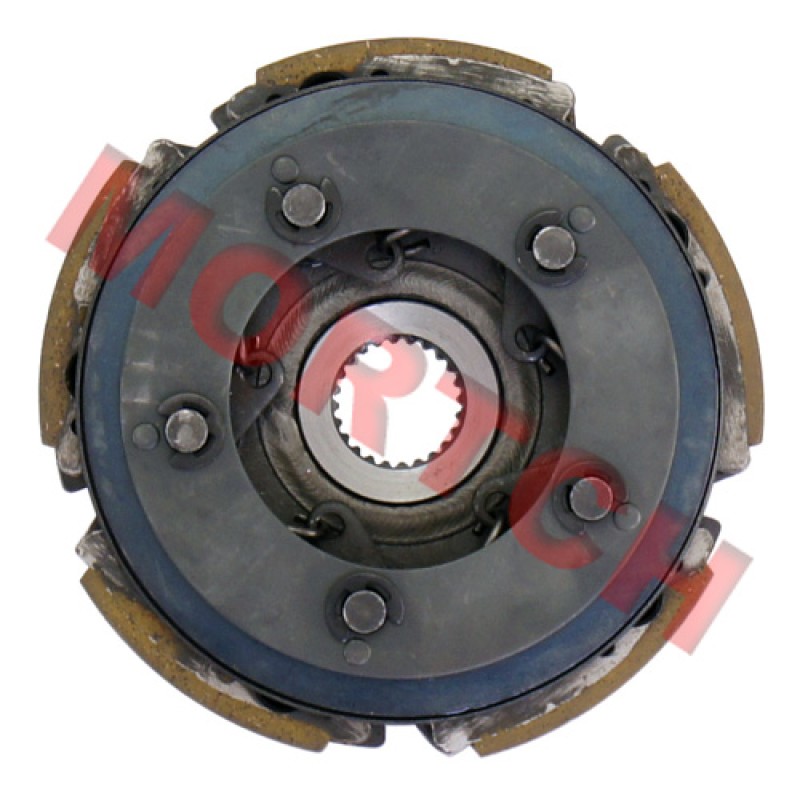

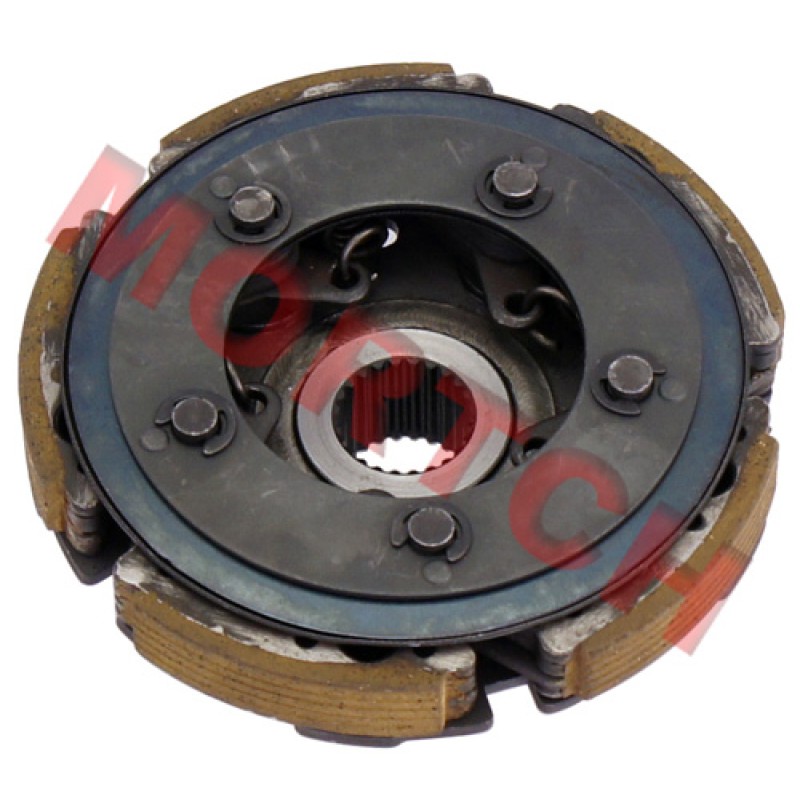

This is Clutch Carrier Assy for the 4 stroke liquid cooled CFmoto CF500 CF188 engine. It has 2 version, this one without engine brake, the difference is that the middle part, we have other version too.
- Pawl Thickness: 16.5mm (4 Layer)
This one can be replace by 0180-054000-0003
If your pawl thickness is 24.5mm (6 Layer), please order 0800-054000
| Overall Height | Biggest Outsidediameter | Shaft Diameter | Number Of Tooth |
| 48 | φ138 | φ46 | 24 |
This may fits
- Linhai ATV 500 D
- Linhai ATV M550 EFI
- Linhai ATV M550L EUROPE EFI
- 2015 X5 HO EPS (Terralander 500)LongWB EFI
- 2014 X5 (Terralander 500)LongWB EFI
- 2013 X5 (Terralander 500)LongWB EFI
- 2012 X5 (Terralander 500)LongWB EFI
- 2011 X5 (Terralander 500)LongWB EFI
- 2014 X5 (Terralander 500)LongWB Carb
- 2013 X5 (Terralander 500)LongWB Carb
- 2012 X5 (Terralander 500)LongWB Carb
- 2011 X5 (Terralander 500)LongWB CARB
- 2014 X5 (Terralander 500)ShortWB EFI
- 2012 X5 (Terralander 500)ShortWB EFI
- 2014 X5 (Terralander 500)ShortWB Carb
- 2013 X5 (Terralander 500)ShortWB Carb
- 2012 X5 (Terralander 500)ShortWB Carb
- 2011 X5 (Terralander 500)ShortWB EFI
- 2011 X5 (Terralander 500)ShortWB Carb
- 2014 CF500-2 ShortWB
- 2013 CF500-2 ShortWB
- 2012 CF500-2 ShortWB
- 2011 CF500-2 ShortWB
- 2014 CF500-2A LongWB
- 2012 CF500-2A LongWB
- 2011 CF500-2A LongWB
- 2007-2009 CF500 LongWB
- 2007-2009 CF500 ShortWB
- 2014 Rancher 600 (CF600-5)
- 2013 Rancher 600 (CF600-5)
- 2012 Rancher 600 (CF600-5)
- 2011 Rancher 600 (CF600-5)
- 2015 Z6 (Terracross 600)
- 2014 Z6 (Terracross 600)
- 2013 Z6 (Terracross 600)
- 2012 Z6 (Terracross 600)
- 2011 Z6 (Terracross 600)
- 2014 Z6-EX (Terracross 625 EX)
- 2013 Z6-EX (Terracross 625 EX)
- 2012 Z6-EX (Terracross 625 EX)
- 2014 X6 (Terralander 625)LongWB EFI
- 2012 X6 (Terralander 625)LongWB
- 2011 X6 (Terralander 625)LongWB
- 2014 X6 (Terralander 625)ShortWB EFI
- 2013 X6 (Terralander 625)ShortWB EFI
- 2012 X6 (Terralander 625)ShortWB
- 2011 X6 (Terralander 625)ShortWB
Compatibility Notice:
- Please verify that this parts fits your specific vehicle model and year. Many vehicle share the same name but may use different parts depending on the manufacturing year.
- We strongly recommend cross-checking with your vehicle's manual or contacting us for confirmation before purchasing.
- Photos, measurements, and descriptions are for reference only. Minor variations may exist due to manufacturing batches or lighting conditions.
- The actual product you receive may differ slightly in appearance but will match the functional specifications.
- Prices listed do NOT include import duties, taxes, or customs clearance fees.
- Buyers are fully responsible for any additional charges imposed by their local customs.
