Rear Upper LH Swing Arm Assy

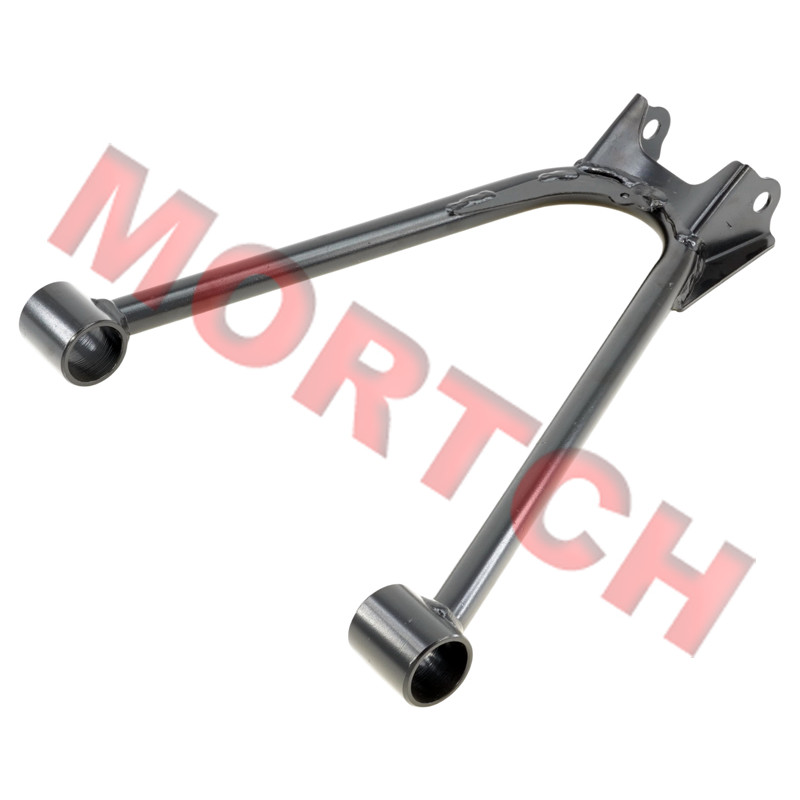

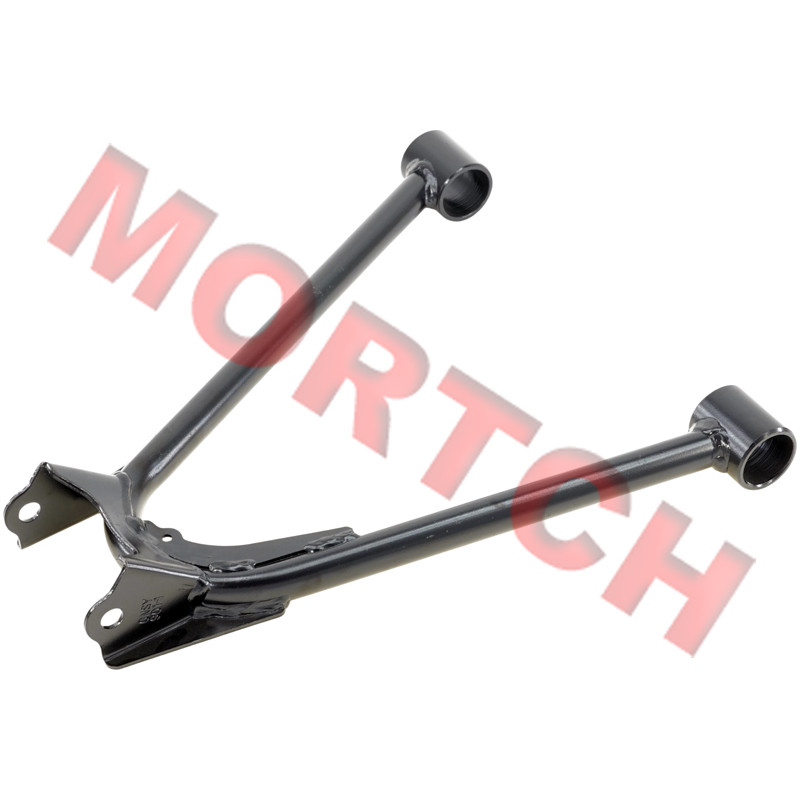

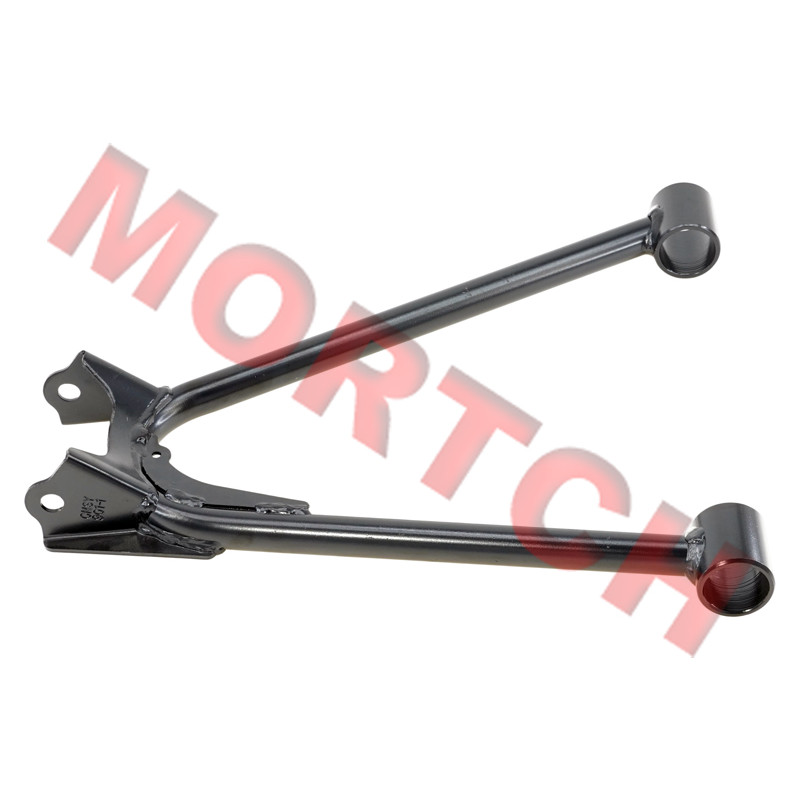

🔧 CFMoto Rear Upper LH Swing Arm Assembly

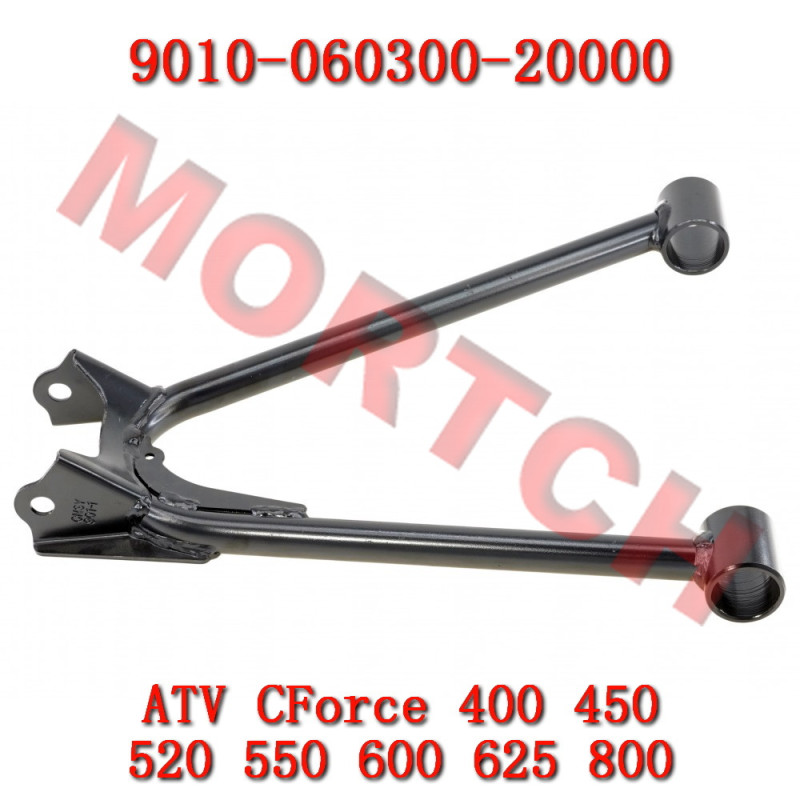

📦 Part Number: 9010-060300-20000

⚙️ Rear Upper LH Swing Arm · Rear Upper Control Arm · OEM Spec

📍 Installation: Rear suspension · Upper left side

✅ Single unit · High-strength welded steel · OEM specification · Fits multiple CFMoto ATV models

This is a CFMoto OEM-spec rear upper left-hand (LH) swing arm assembly, part number 9010-060300-20000, sold as a single unit. This component is a critical structural part of the rear suspension system, installed on the upper left side between the rear axle and frame. Working together with the lower swing arm, it controls wheel alignment, load transfer, and suspension movement — playing a vital role in handling stability, driving safety, and ride comfort.

Over time, the rear upper swing arm may experience deformation, cracks, or bushing wear due to road impacts, fatigue loads, or corrosion — leading to vehicle pulling, abnormal tire wear, or degraded handling. Replacing it promptly with an OEM-spec unit is essential to restore suspension performance and ensure driving safety.

• ✅ OEM Specification: Manufactured to CFMoto's original technical standards. Dimensions and mounting points are identical to genuine parts.
• 🛡️ High-Strength Steel: Made from premium high-strength steel with precision welding and heat treatment for superior strength and impact resistance.
• 🔧 Precision Manufacturing: Precision stamped and welded to ensure accurate mounting hole alignment and perfect suspension fitment.
• 💪 Restored Suspension Performance: Effectively restores rear suspension stability and handling for safe driving.
• 🔄 Direct Replacement: Can be used to directly replace deformed, cracked, or damaged original upper swing arm assemblies.

✅ Typical signs that the rear upper LH swing arm needs replacement:
• Vehicle pulls to one side or rear wheel feels unstable.
• Unusual noises or looseness from the rear suspension.
• Abnormal tire wear (uneven wear patterns).
• Visual inspection reveals cracks, bending, or rust-through.
• Excessive play due to bushing wear.
• Suspension damage after a major impact.
If any of these signs appear, please inspect and replace the rear upper LH swing arm assembly promptly to maintain safe and proper suspension operation.

✅ Installation Tips:
1. Confirm the swing arm part number is 9010-060300-20000 and matches your vehicle.
2. Raise and securely support the vehicle, then remove the left rear wheel.
3. Remove the bolts connecting the swing arm to the frame and rear axle.
4. Note the bolt positions and washer order, then carefully remove the old swing arm.
5. Clean the mounting area and inspect the connection points for wear or damage.
6. Install the new swing arm and torque all bolts to the specified values.
7. Reinstall the wheel, lower the vehicle, and perform a suspension inspection and wheel alignment.
Professional installation is recommended. A wheel alignment is essential after installation to ensure tire life and handling performance.

⚠️ Important Notice: This product is a CFMoto rear upper LH swing arm assembly, part number 9010-060300-20000, single unit. Fits the listed CFMoto ATV models. Minor variations may exist between production batches. If your specific model is not listed, please contact us with your VIN to confirm compatibility. Images are for reference only; actual product may differ slightly. We recommend inspecting the right-side swing arm as well.
